2. The rated current that the switch does not switch frequently: up to 400mA
3. The rated current of the switch is often switched: up to 150mA
4. Insulation resistance: minimum 100mΩ
Second, the mechanical properties: 1. Electrical life: 10,000 times 2. Number of digits: 2 files - 6 files 3. Operating temperature: -20 ° C ~ +70 ° C
Third, the welding and cleaning process: 1. Hand welding: temperature control at 200 ° C, welding time of about 10 seconds 2. Wave soldering: temperature control at 130 ° C, welding time of about 2 seconds

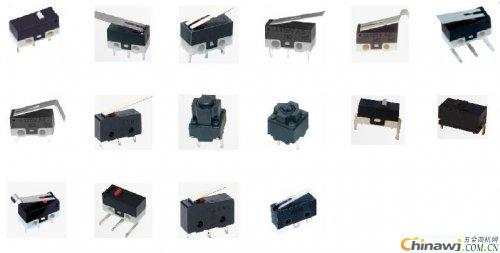

The main technical indicators of the blade switch:
Power DC 30V 0.4A withstand AC150V for 1 minute Contact resistance 30mΩmax.at 1a 5v dc Operating force 30-120g Insulation resistance 100MΩ min.at 500v dc Lifetime 100,000 times
