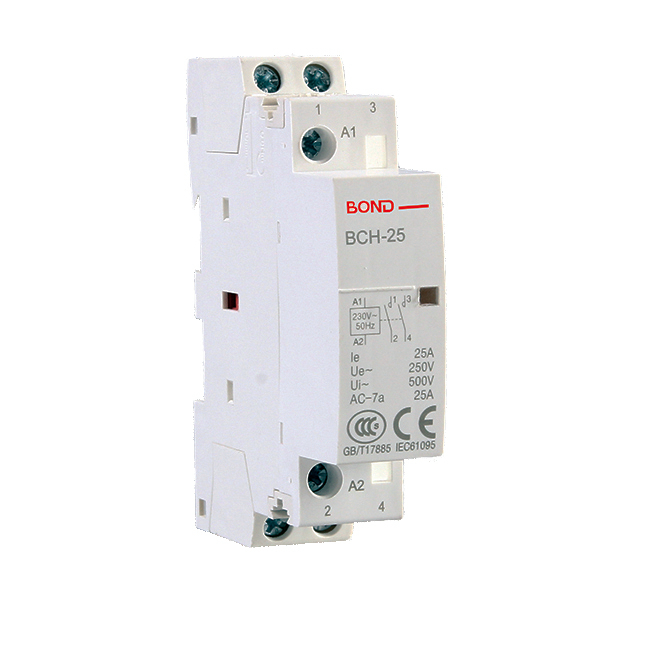

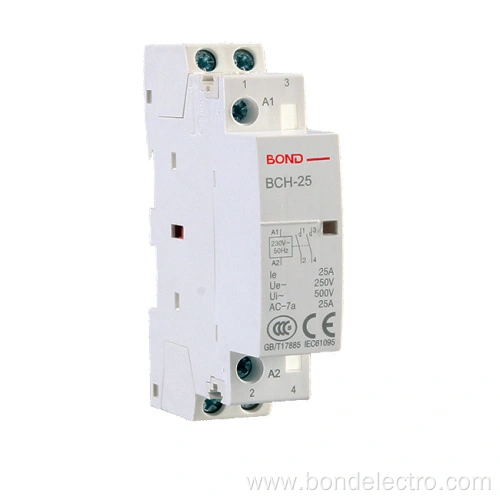

BCH-25 2P 25A Modular AC Contactor

BCH-25 2P 25A Modular AC Contactor

Payment Type: L/C,T/T,D/P
Incoterm: FOB
Min. Order: 1 Case
Delivery Time: 30 Days

Basic Info

    Model No.: BCH-25 2P 25A Modular AC Contactor

    Electricity Type: AC

    Number of Pole: 2

    Phase: 1

    Main Circuit Rating Voltage: Other

    Main Circuit Rating Current: Other

    Type: Ac Contactors

Additional Info

    Packaging: Cartons

    Transportation: Ocean,Air

    HS Code: 8536909000

    Port: Ningbo

Product Description

BCH series AC Contactor is a kind of control electric appliance which is used for long distance switch on and break off sense or low load, electric resistance furnace, household appliances and similar application.It is widely used for household electrical appliances control.

Modular AC Contactor is used for remote control switch on and switch off the household electrical appliances which no inductance or with lower inductance loading. Such as electromagnetic oven, motors and other electrical appliances.

Modular AC Contactor mainly used in AC50Hz/60Hz,rated voltage to 400V,rated current of power system to 100A,AC-1,AC-7a (in no inductance or lower inductance load, resistance furnace, household appliances and similar lower inductance load) categories. Long distance switch and control circuit. House use AC Contactor is not used for breaking short circuit current, so it is necessary to choose suitable circuit protection electrical equipment for short circuit protection.

BCH series Modular AC Contactor is the latest product developed by our company based on imported iCT series contactor, which can completely replace imported products. The performance of the products has been verified by the KEMA laboratory in the Netherlands and the TUV laboratory in TÜV Rheinland, and has reached the international advanced level of similar products.

BCH series Household contactors can be used in a wide range of lighting line control, public hot water control, geothermal system power control, automatic roller blind control, small motor control and other occasions. It can effectively control all kinds of electrical equipment in large public places such as hotels, hotels, stations, hospitals, office buildings, etc. It can be used as the best terminal actuator for intelligent building systems.
BCH series Household Contactor selects the world's leading 0.06mm, H-class high-precision high temperature enameled wire, which effectively ensures the core coil components of the product operate reliably in a 60°C high temperature enclosed distribution box.
The BCH series contactor is made of the domestically leading WISCO 50W350 high magnetic flux steel sheet material, and is carefully manufactured to withstand ten million times of high-life iron core. At the same time, the BCH series contactor holding power is reduced to 2.6VA, reaching the level 2 energy consumption standard, effectively saving energy consumption for customers.
The BCH series Modular Contactor fully optimizes the contact structure and material. It adopts a new welded silver contact and uses integral silver contacts. The full-load electrical life is up to 120,000 times, which ensures the long-term reliable operation of the product.
The BCH series Modular Contactor uses a contactor to fully optimize the product wiring structure and increase the product protection level to IP20.
The BCH series Contactor can be equipped with auxiliary contacts for self-holding.

Modular AC Contactors

Looking for ideal 2P 25A Modular Contactor Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the 25A Modular Contactor are quality guaranteed. We are China Origin Factory of 25A 2P Household Contactor. If you have any question, please feel free to contact us.
