Air Delay Timer Auxiliary Contact Block

Share to:
    Payment Type: L/C,T/T,D/P
    Incoterm: FOB,CIF,EXW
    Min. Order: 100 Bag/Bags
    Delivery Time: 30 Days

Basic Info

Model No.: LA2-DT LA3-DR series Delay Timer

Electricity Type: AC

Number of Pole: Other

Phase: Other

Main Circuit Rating Voltage: Other

Main Circuit Rating Current: 400A

Additional Info

Packaging: STANDARD EXPORT PACKAGING

Transportation: Ocean,Air

HS Code: 8536909000

Port: NINGBO

Product Description

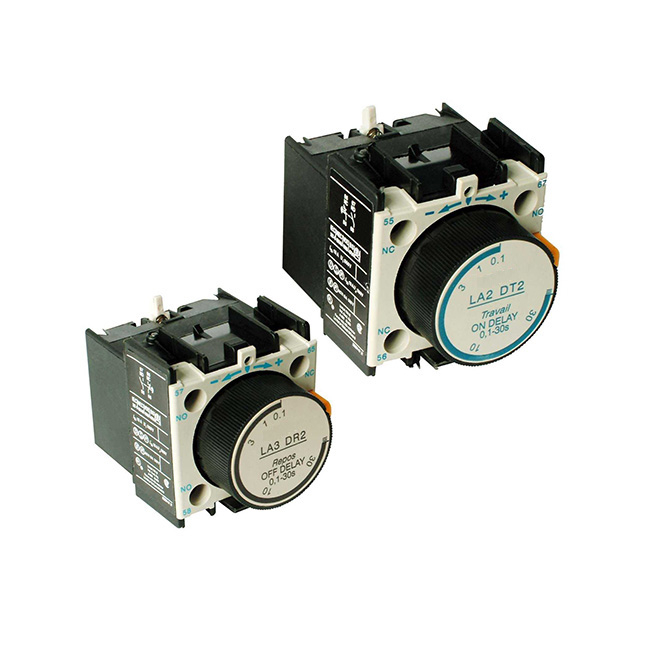

LA2-DT LA3-DR series Air Delay Timer, working as Auxiliary Contact Block of AC Contactors, are combined with LC1-D series AC Contactor and BC1-D series AC Contactors and LA1-D Auxiliary Contact Blocks into Star-delta reduced voltage to start motor.

LA2-DT LA3-DR series Air Delay Timer (air damped time relay), also known as the airbag type time relay, is delayed by the principle that the air is damped when passing through the small hole. (Our own model number is BA2-DT and BA3-DR series)

Rated insulation voltage: 600V
Rated heating current: 10A
Rated control capacity: AC-15 360VA; DC-13 33(W)
Rated operating current: AC-15 380V 0.95A; DC-13 220V 0.15A
Delay characteristics: power-on delay 1NO; power-down delay 1NC

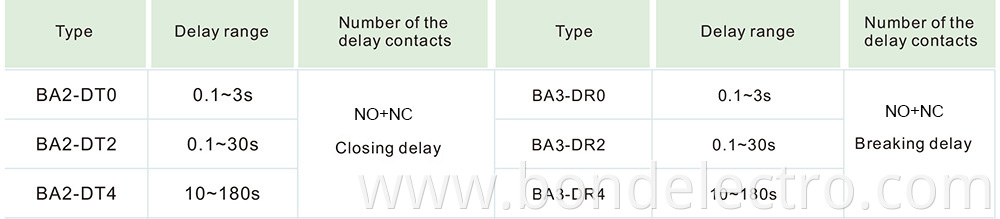

Delay range: 0.1 ~ 3 S; 0.1 ~ 30S; 10 ~ 180 S;
Delay repeat error: ± 5%
Electrical life: 1 million times
Mechanical life: 3 million times

LA2 Timer Delay



Looking for ideal Air Delay Timer Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the LA2 Timer Delay are quality guaranteed. We are China Origin Factory of Auxiliary Contact Block. If you have any question, please feel free to contact us.

Product Categories : Contactor Accessories
