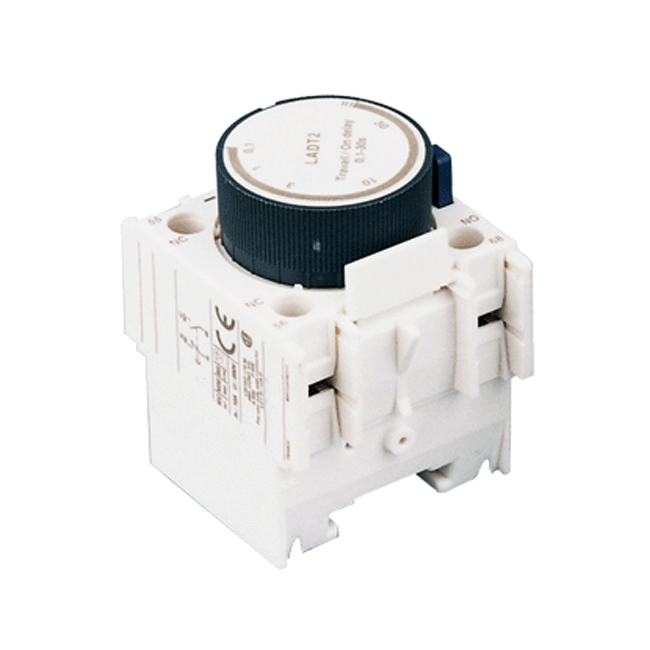

Model No.: LA2-D New type Timer Delay Contact Block
Electricity Type: AC
Number of Pole: Other
Phase: Other
Main Circuit Rating Voltage: Other
Main Circuit Rating Current: Other
Type: Ac Contactors
Packaging: STANDARD EXPORTING PACKAGING
Transportation: Ocean,Air
HS Code: 8536909000
Port: NINGBO,WENZHOU,SHANGHAI
New type LA2-DT LA3-DR series Air Delay Timer (air damped time relay), also known as the airbag type time relay, is delayed by the principle that the air is damped when passing through the small hole. (Our own model number is BA3-DT and BA3-DR series)
New LA2-DT LA3-DR series Air Delay Timer, working as Auxiliary Contact Block of AC Contactors, are combined with LC1-DN series Magnetic AC Contactor and new LA1-D Auxiliary Contact Blocks into Star-delta reduced voltage to start motor.
Rated insulation voltage: 600V
Rated heating current: 10A
Rated control capacity: AC-15 360VA; DC-13 33(W)
Rated operating current: AC-15 380V 0.95A; DC-13 220V 0.15A
Delay characteristics: power-on delay 1NO; power-down delay 1NC

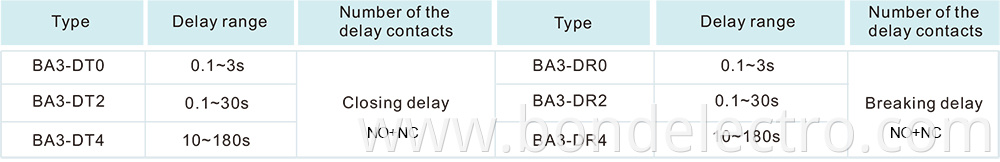

Delay range: 0.1 ~ 3 S; 0.1 ~ 30S; 10 ~ 180 S;
Delay repeat error: ± 5%
Electrical life: 1 million times
Mechanical life: 3 million times
Product Categories : Contactor Accessories
