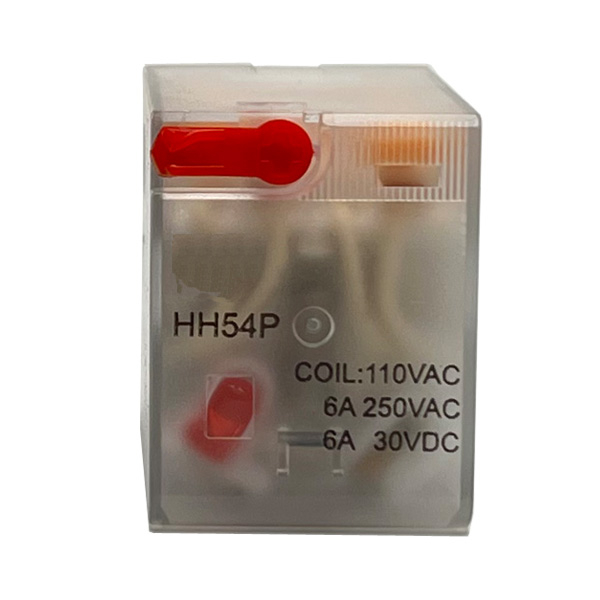

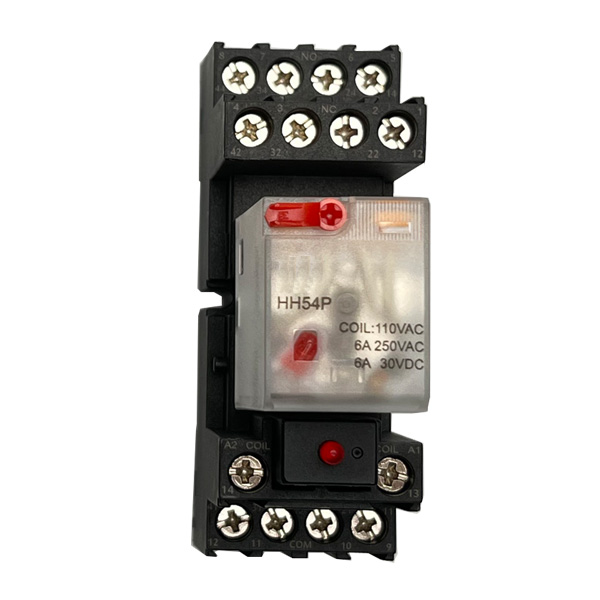

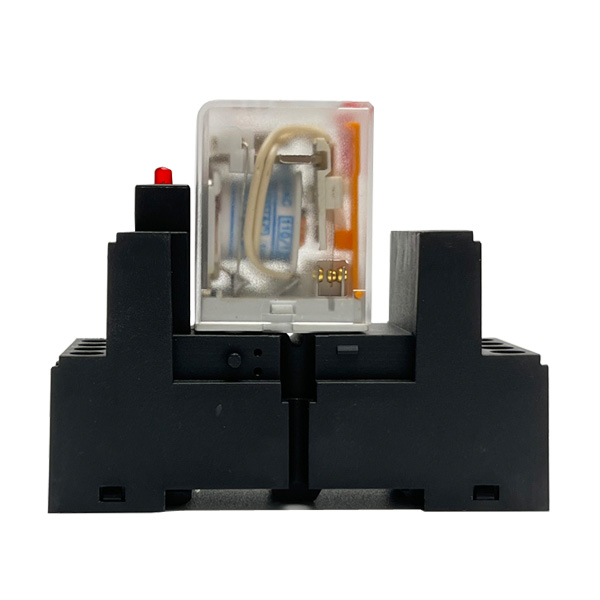

HH54P-W Relay is a new designed product, which used in relay protection and automatic control systems to increase the number and capacity of contacts. It is used to pass intermediate signals in the control circuit. With the new function of manually setting on-off, or called emergency stop. This relay with socket, also with the surge protect indicator function. It will be more safe for the Relays.

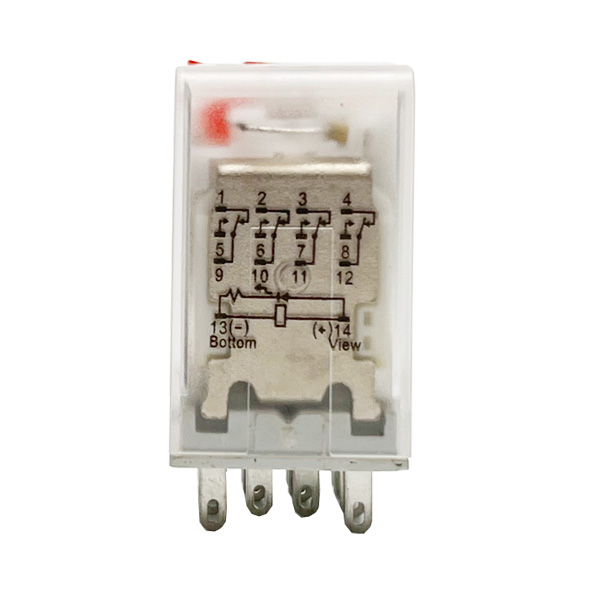

One---contact parameter: 1. Contact form: 4Z 2. Contact capacity: 28VDC 6A 250VAC 3. Contact material: silver alloy 4. Contact gap: ≥0.4mm 5. Contact resistance: ≤50mΩ Two---voltage parameters: 1. Pull-in voltage: AC≤ 80% rated voltage (can be customized),DC≤75% rated voltage (can be customized) 2. Release voltage: AC≥30% rated voltage (can be customized),DC≥10% rated voltage (can be customized) 3. Pick-up time: ≤15ms 4. Release time: ≤10ms 5. Rated power: AC: 1.2VA DC: 0.9W (can be customized) 6. Maximum voltage: 110% rated voltage Three--medium withstand voltage: 1. Between the same pole contact: 1000V AC / 1min (leakage current 1ma) 2. Between different pole contacts: 1000V AC / 1min (leakage current 1ma) Insulation resistance: ≥100mΩ (500V DC) Electric strength: BOC BCC 1500 VAC Coil rated voltage: AC6-380V DC 6-220V Coil rated power: DC≤0.9W AC≤1.2VA Electrical life: 105OPS Mechanical life: 107OPS Use the ambient temperature: -25 ° C ~ +70 ° C Weight: ≤35g
