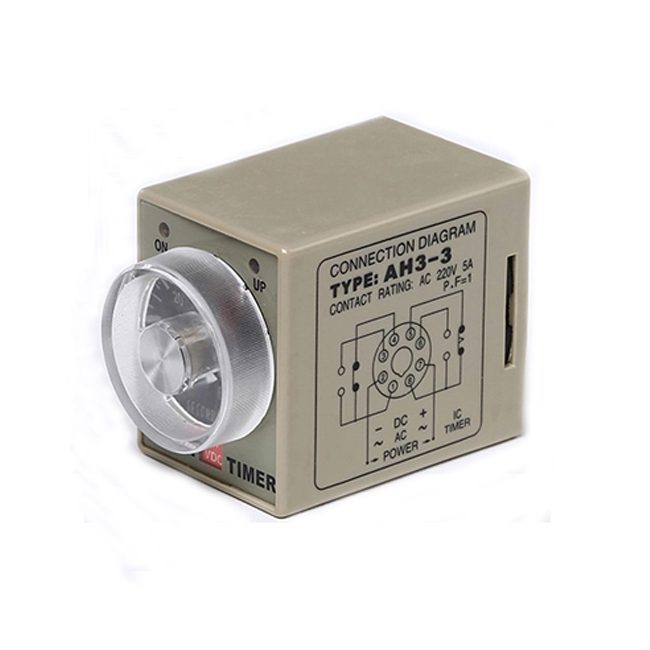

Model No.: AH3 Time Delay Relay
Brand: Bond
Theory: Time Relay
Size: Other
Action Principle: Other
Protective Characteristics: Other
Load: Other
Number Of Pole: Other
Electricity Type: Other
Phase: Other
Type: Other
Packaging: STANDARD EXPORT PACKAGING
Productivity: 10000
Transportation: Ocean,Air
Place of Origin: China
Supply Ability: 10000
Certificate: CE
HS Code: 8536500000
Port: NINGBO
Payment Type: L/C,T/T,D/P
Incoterm: FOB,CIF,EXW
AH3 Series electric time relays have small size, light weight , high delay accuracy, wide time range, good reliability,long life characteristics etc, The items complied with inter national standard are suitable for kinds of high precision and reliability auto control situation to delay control .
Description:
- Multi-range analogue timer
- Customized CMOS IC for low power consumption, high operation stability and extreme timing accuracy
- Flush mount with Type US-08 or P3G-08 base and surface mount with Type F083A(E) base
- 5 (NA, NB, NC, ND, NE) timing series available
- 20 different time ranges from 0.1 sec to 30 hours available
- Each timing series has 4 time ranges, selectable via DIP switch
- 2 modes selectable via slide switch: Mode A (2C) for DPDT time-limiting output contacts and Mode B (1A1C) for SPDT instantaneous and time-limiting output contacts
Product Categories : Timer Relay
