Model No.: MSQ-30 MSQ-40 MSQ-60 MSQ-80 MSQ-100
Brand: Bond
Application: Instrument
Type: Current Transformer
Phase: Single
Operation Condition: Indoor
Usage: Measurement
Winding Form: Small Fixed Type
Insulating Medium: Common Insulating Materials
Installation: Busbar Type
Magnetic Circuit Structure: Single Stage Type
Voltage Transformation Principle: Electromagnetic Type
Packaging: carton
Productivity: 10000
Transportation: Ocean,Air
Place of Origin: China
Certificate: CE
HS Code: 95360000
Port: Ningbo,Shanghai,Wenzhou
Payment Type: L/C,T/T,D/P
Incoterm: FOB,CFR,CIF,EXW

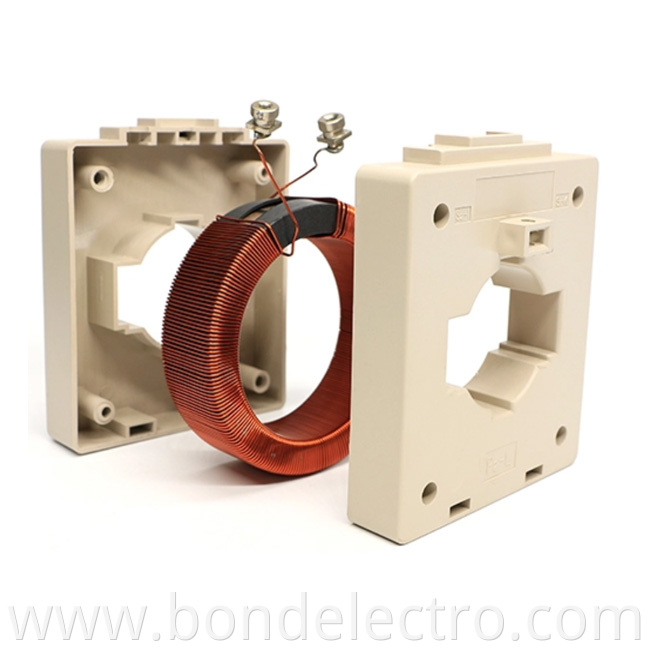

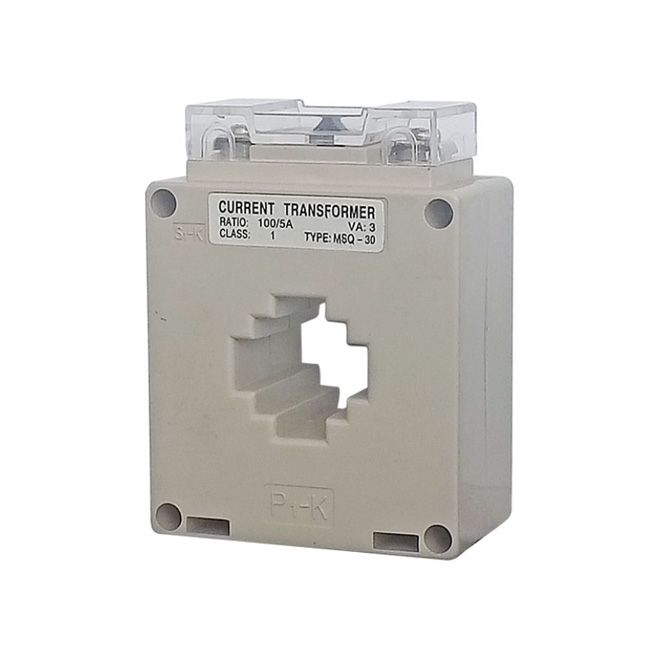

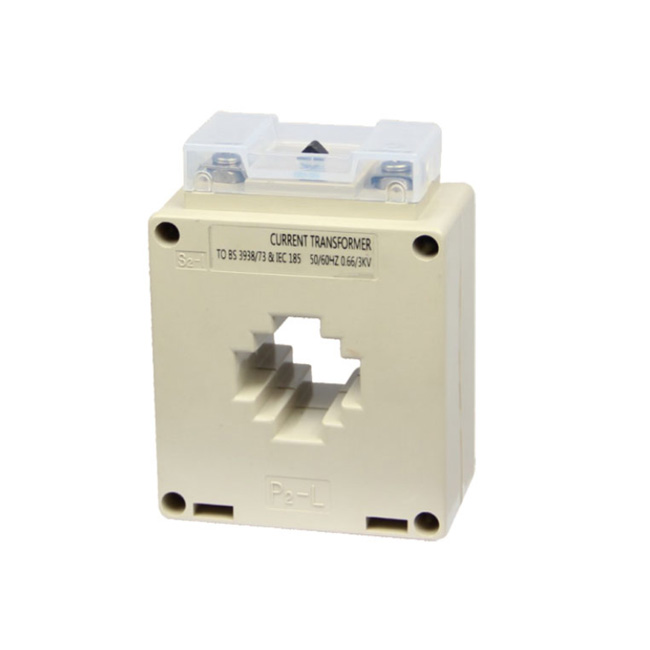

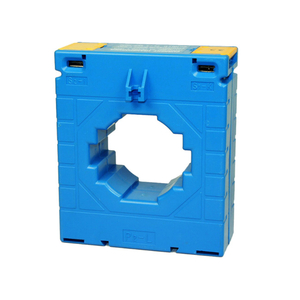

MSQ series Low Voltage Current Transformer

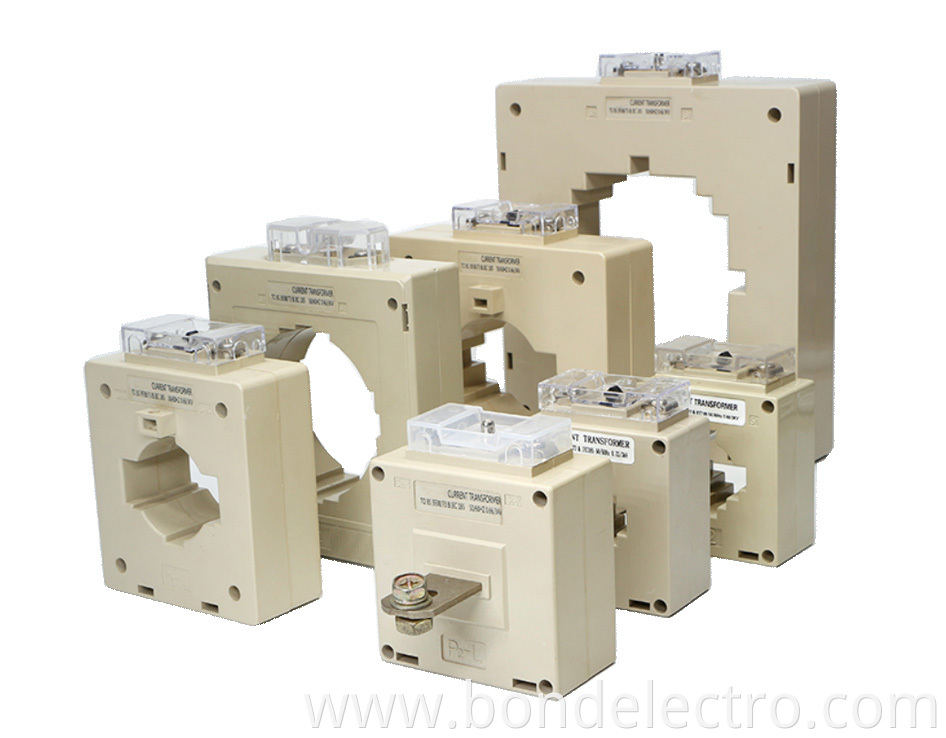

MSQ series Current Transformer has a range of 7models, can be applied to test, control, display and record the running of the electrical quipment,and to protect the equipment against the damage, in the AC Circuit with the rated voltage value below 600V and the frequency of 50-60Hz. The Current Transformer can be also applied to form a complete set of mine transformer. MSQ Current Transformer is produced according to the standards of IEC60044-1 GB1208-2006.
Features

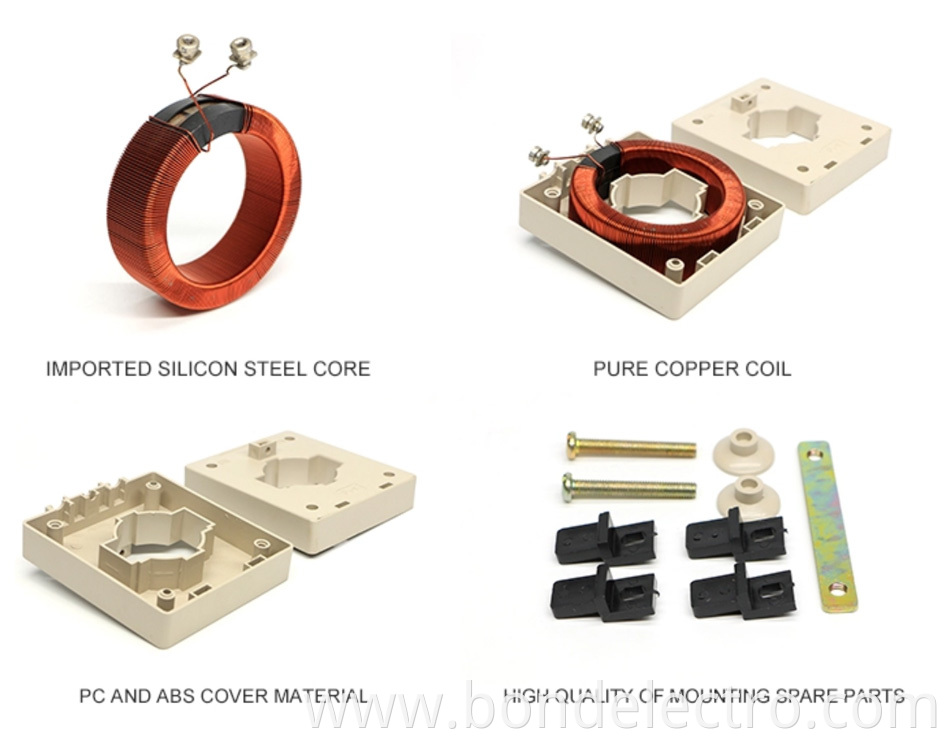

Two built in fixing methods: panel and busbar
Transparent terminal cover
Primary current up to 6000A
| Rated frequency | 50/60Hz |
| Rated test voltage | 3Kv AC (1 min) |
| Rated short-time thermal current (Ith) | 60In |
| 60In Rated dynamic current (Idyn) | 2.5Ith |
| Rated voltage (Um) | 0.72Kv AC |
| Continuous overload (Id) | 1.2In |
| Operating temperature | .-10 degree to 50 degree |
| Housing self-extinguishing class | VO |
| Safety factor | FS 5 |
| Secondary current | 5A/1A |
Standards and Details:
IEC60044-1 GB1208-2006
| Type | Ratio(A) | Burden(VA) | |
| Class:0.5 | Class:1.0 | ||
| MSQ-30 | 30/5 | - | 1.5(2T) |
| MSQ-30 | 40/5 | - | 1.5(2T) |
| MSQ-30 | 50/5 | - | 2.5(2T) |
| MSQ-30 | 60/5 | - | 2.5(2T) |
| MSQ-30 | 75/5 | - | 1.5 |
| MSQ-30 | 80/5 | - | 1.5 |
| MSQ-30 | 100/5 | - | 2.5 |
| MSQ-30 | 150/5 | - | 3.75 |
| MSQ-30 | 200/5 | 5 | 5 |
| MSQ-30 | 250/5 | 5 | 7.5 |
| MSQ-30 | 300/5 | 5 | 10 |
| MSQ-30B | 5/5 | 5 | 7.5 |
| MSQ-30B | 10/5 | 5 | 7.5 |
| MSQ-30B | 15/5 | 5 | 7.5 |
| MSQ-30B | 20/5 | 5 | 7.5 |
| MSQ-30B | 25/5 | 5 | 7.5 |
| MSQ-30B | 30/5 | 5 | 7.5 |
| MSQ-30B | 50/5 | 5 | 7.5 |
| MSQ-30B | 60/5 | 5 | 7.5 |
| MSQ-30B | 100/5 | 5 | 7.5 |
| MSQ-30B | 150/5 | 5 | 7.5 |
| MSQ-30B | 200/5 | 5 | 7.5 |
| MSQ-30B | 250/5 | 5 | 7.5 |
| MSQ-30B | 300/5 | 5 | 7.5 |
| MSQ-40 | 100/5 | 1.5 | 1.5 |
| MSQ-40 | 150/5 | 1.5 | 2.5 |
| MSQ-40 | 200/5 | 2.5 | 5 |
| MSQ-40 | 250/5 | 5 | 5 |
| MSQ-40 | 300/5 | 5 | 5 |
| MSQ-40 | 400/5 | 5 | 7.5 |
| MSQ-40 | 500/5 | 5 | 7.5 |
| MSQ-60 | 250/5 | 1.5 | 2.5 |
| MSQ-60 | 300/5 | 2.5 | 5 |
| MSQ-60 | 400/5 | 5 | 10 |
| MSQ-60 | 500/5 | 5 | 10 |
| MSQ-60 | 600/5 | 5 | 10 |
| MSQ-60 | 750/5 | 5 | 10 |
| MSQ-60 | 800/5 | 7.5 | 10 |
| MSQ-60 | 1000/5 | 10 | 15 |
| MSQ-60 | 1200/5 | 10 | 15 |
| MSQ-60 | 1500/5 | 15 | 15 |
| MSQ-60 | 1600/5 | 15 | 15 |
| MSQ-85 | 750/5 | 5 | 10 |
| MSQ-85 | 800/5 | 7.5 | 10 |
| MSQ-85 | 1000/5 | 10 | 10 |
| MSQ-85 | 1200/5 | 10 | 15 |
| MSQ-85 | 1500/5 | 15 | 15 |
| MSQ-85 | 1600/5 | 15 | 15 |
| MSQ-85 | 2000/5 | 15 | 15 |
| MSQ-100 | 800/5 | 7.5 | 10 |
| MSQ-100 | 1000/5 | 10 | 10 |
| MSQ-100 | 1200/5 | 10 | 15 |
| MSQ-100 | 1250/5 | 10 | 15 |
| MSQ-100 | 1500/5 | 15 | 15 |
| MSQ-100 | 1600/5 | 15 | 15 |
| MSQ-100 | 2000/5 | 15 | 15 |
| MSQ-100 | 2500/5 | 15 | 15 |
| MSQ-100 | 3000/5 | 15 | 15 |
| MSQ-125 | 1000/5 | 5 | 10 |
| MSQ-125 | 1200/5 | 7.5 | 10 |
| MSQ-125 | 1500/5 | 10 | 15 |
| MSQ-125 | 1600/5 | 10 | 15 |
| MSQ-125 | 2000/5 | 15 | 20 |
| MSQ-125 | 2500/5 | 15 | 20 |
| MSQ-125 | 3000/5 | 15 | 20 |
| MSQ-125 | 4000/5 | 15 | 20 |
| MSQ-125 | 5000/5 | 20 | 20 |
| MSQ-125 | 6000/5 | 20 | 20 |
