Model No.: MES-62 / MES-80 / MES-100
Brand: Bond
Application: Instrument
Type: Current Transformer
Phase: Single
Operation Condition: Indoor
Usage: Measurement
Winding Form: Small Fixed Type
Insulating Medium: Common Insulating Materials
Installation: Busbar Type
Magnetic Circuit Structure: Single Stage Type
Voltage Transformation Principle: Electromagnetic Type
Packaging: carton
Productivity: 10000
Transportation: Ocean,Air
Place of Origin: China
Certificate: CE
HS Code: 95360000
Port: Ningbo,Shanghai,Wenzhou
Payment Type: L/C,T/T,D/P
Incoterm: FOB,CFR,CIF,EXW

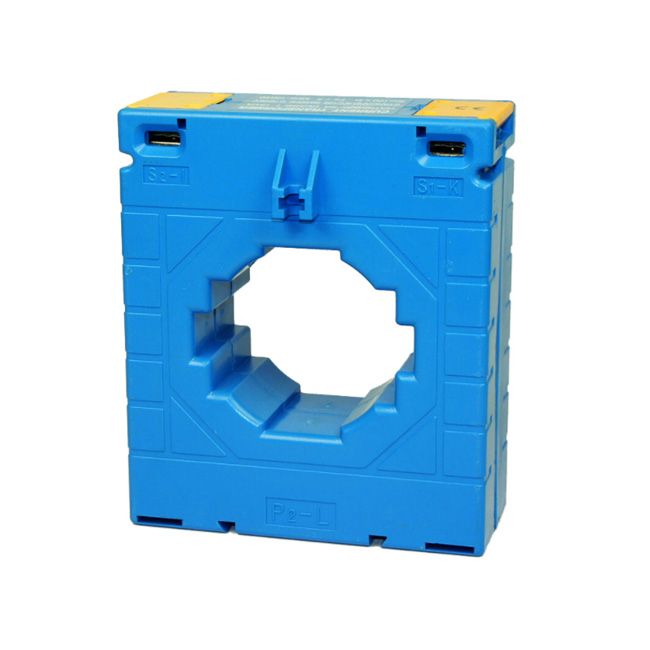

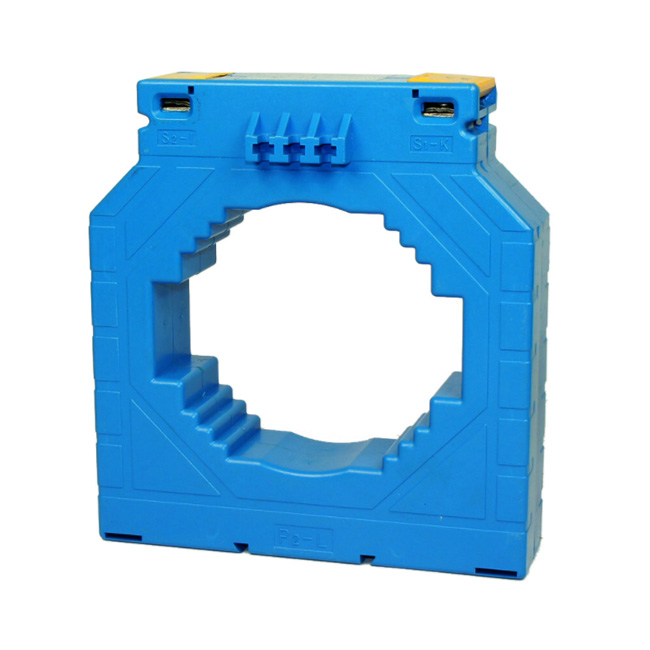

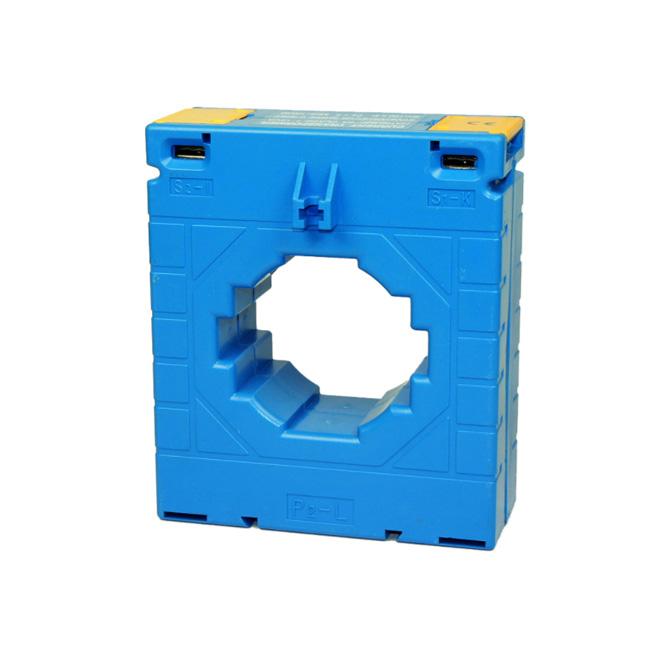

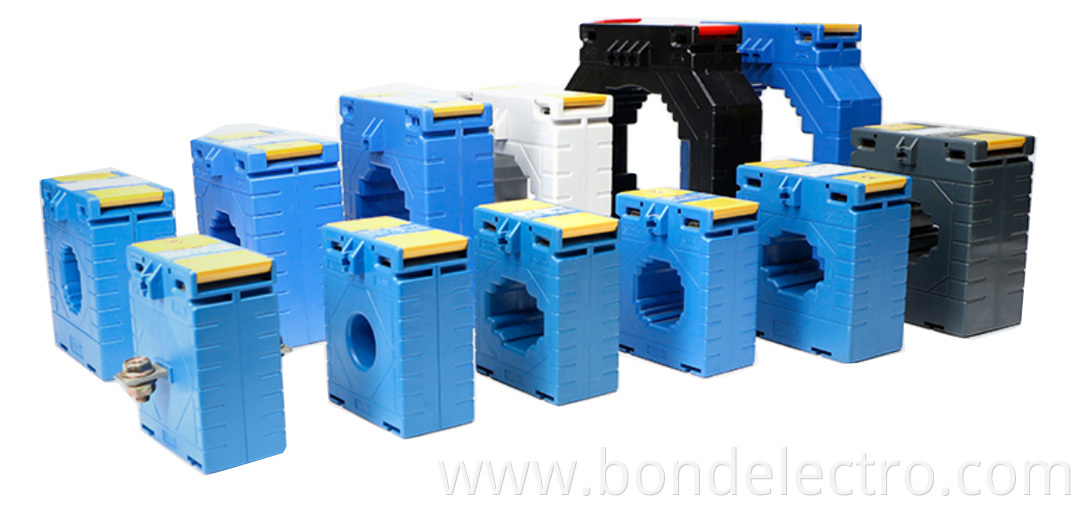

MES series High Accuracy Current Transformer
MES series Current Transformer can be applied to test, control, display and record the running of the electrical quipment,and to protect the equipment against the damage, in the AC Circuit with the rated voltage value below 600V and the frequency of 50-60Hz. The Current Transformer can be also applied to form a complete set of mine transformer. MSQ Current Transformer is produced according to the standards of IEC60044-1 GB1208-2006.

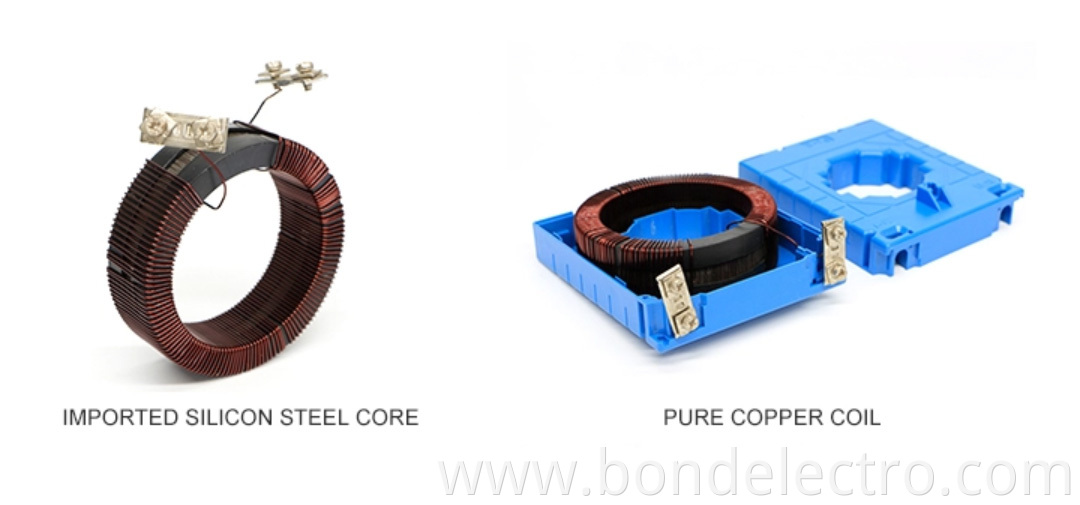

MES Current Transformer is a range of compact plastic case current transformer. Its volume is much smaller than general model. Its integral hinged plate terminal cover and din rail mounting all make MES CT match requirements in space limited panels.
Features

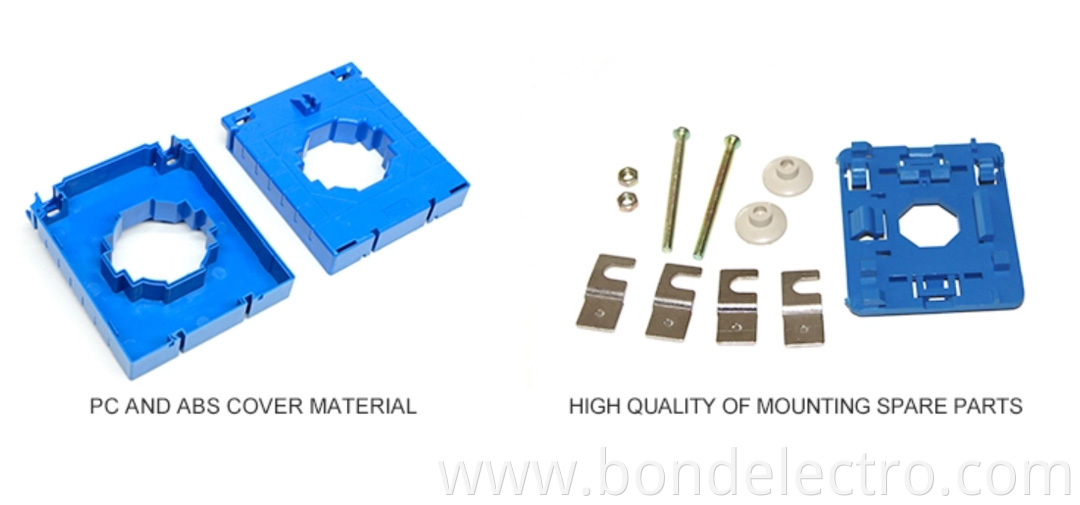

Three built in fixing methods: panel/din rail/busbar
Built in hinged terminal cover
Compact design
Primary current from 5A to 3000A
| Rated frequency | 50/60Hz |
| Rated test voltage | 3Kv AC (1 min) |
| Rated short-time thermal current (Ith) | 60In |
| 60In Rated dynamic current (Idyn) | 2.5Ith |
| Rated voltage (Um) | 0.72Kv AC |
| Continuous overload (Id) | 1.2In |
| Operating temperature | .-10 degree to 50 degree |
| Housing self-extinguishing class | VO |
| Safety factor | FS 5 |
| Secondary current | 5A/1A |
Standard
IEC60044-1 GB1208-2006
| Type | Ratio(A) | Burden(VA) | |
| Class:0.5 | Class:1.0 | ||
| MES-62/20 | 30/5 | - | 2.5(4T) |
| MES-62/20 | 40/5 | - | 2.5(3T) |
| MES-62/20 | 55/5 | - | 2.5(3T) |
| MES-62/20 | 60/5 | - | 2.5(2T) |
| MES-62/20 | 75/5 | - | 1.5 |
| MES-62/20 | 80/5 | - | 2.5 |
| MES-62/20 | 100/5 | 1.5 | 2.5 |
| MES-62/20 | 150/5 | 2.5 | 3.75 |
| MES-62/20 | 200/5 | 3.75 | 5 |
| MES-62/30 | 30/5 | - | 2.5(4T) |
| MES-62/30 | 40/5 | - | 2.5(3T) |
| MES-62/30 | 50/5 | - | 2.5(3T) |
| MES-62/30 | 60/5 | - | 2.5(2T) |
| MES-62/30 | 75/5 | - | 1.5 |
| MES-62/30 | 100/5 | 1.5 | 2.5 |
| MES-62/30 | 150/5 | 2.5 | 3.75 |
| MES-62/30 | 200/5 | 3.75 | 5 |
| MES-62/40 | 60/5 | - | 1.5(2T) |
| MES-62/40 | 75/5 | - | 1.5(2T) |
| MES-62/40 | 100/5 | - | 1.5 |
| MES-62/40 | 150/5 | - | 2.5 |
| MES-62/40 | 200/5 | 2.5 | 3.75 |
| MES-62/40 | 250/5 | 2.5 | 3.75 |
| MES-62/40 | 300/5 | 3.75 | 5 |
| MES-62/B | 5/5 | 1.5 | 2.5 |
| MES-62/B | 10/5 | 1.5 | 2.5 |
| MES-62/B | 15/5 | 1.5 | 2.5 |
| MES-62/B | 20/5 | 1.5 | 2.5 |
| MES-62/B | 25/5 | 1.5 | 2.5 |
| MES-62/B | 30/5 | 1.5 | 2.5 |
| MES-62/B | 40/6 | 1.5 | 2.5 |
| MES-62/B | 50/5 | 1.5 | 2.5 |
| MES-62/B | 60/5 | 1.5 | 2.5 |
| MES-62/B | 75/5 | 1.5 | 2.5 |
| MES-62/B | 100/5 | 1.5 | 2.5 |
| MES-62/B | 150/5 | 1.5 | 2.5 |
| MES-80/30 | 30/5 | - | 2.5(4T) |
| MES-80/30 | 50/5 | - | 2.5(2T) |
| MES-80/30 | 60/5 | - | 2.5(2T) |
| MES-80/30 | 75/5 | - | 1.5 |
| MES-80/30 | 100/5 | - | 2.5 |
| MES-80/30 | 150/5 | 2.5 | 3.75 |
| MES-80/30 | 200/5 | 3.75 | 5 |
| MES-80/40 | 100/5 | - | 2.5 |
| MES-80/40 | 150/5 | 2.5 | 3.75 |
| MES-80/40 | 200/5 | 3.75 | 5 |
| MES-80/40 | 250/5 | 3.75 | 5 |
| MES-80/40 | 300/5 | 5 | 5 |
| MES-80/40 | 400/5 | 5 | 10 |
| MES-80/40 | 500/5 | 5 | 10 |
| MES-100/60 | 400/5 | 3.75 | 5 |
| MES-100/60 | 500/5 | 5 | 10 |
| MES-100/60 | 600/5 | 10 | 10 |
| MES-100/60 | 750/5 | 10 | 15 |
| MES-100/60 | 800/5 | 10 | 15 |
| MES-100/60 | 1000/5 | 10 | 20 |
| MES-100/60 | 1200/5 | 15 | 20 |
| MES-100/60 | 1500/5 | 15 | 20 |
| MES-100/60 | 1500/5 | 15 | 20 |
| MES-100/60 | 400/5 | 3.75 | 5 |
| MES-100/60 | 500/5 | 5 | 10 |
| MES-100/60 | 600/5 | 10 | 10 |
| MES-100/60 | 750/5 | 10 | 15 |
| MES-100/60 | 800/5 | 10 | 15 |
| MES-100/60 | 1000/5 | 10 | 20 |
| MES-100/60 | 1200/5 | 15 | 20 |
| MES-100/60 | 1500/5 | 15 | 20 |
| MES-100/60 | 1500/5 | 15 | 20 |
