| Quantity: | |
|---|---|

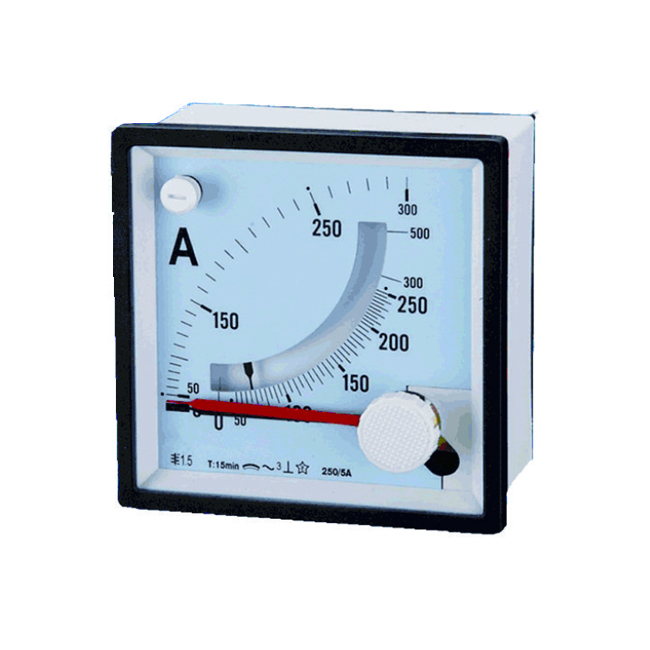

Model No.: 96x96 Double Pointer Ammeter
Brand: Bond
Application: Instrument
Type: Combined Transformer
Phase: Single
Operation Condition: Indoor
Usage: Measurement
Winding Form: Small Fixed Type
Insulating Medium: Common Insulating Materials
Installation: Strut Type
Magnetic Circuit Structure: Single Stage Type
Voltage Transformation Principle: Electromagnetic Type
Packaging: carton
Productivity: 10000
Transportation: Ocean,Air
Place of Origin: China
Certificate: CE
HS Code: 95360000
Port: Ningbo,Shanghai,Wenzhou
Payment Type: L/C,T/T,D/P
Incoterm: FOB,CFR,CIF,EXW
Analog Panel Meters
The Double Pointer Panel Meter is intended for measuring AC current. These Panel Meters will be installed in the switchgear to showing the voltage or current of the electrical circuit. The Meters measure the RMS value and their indications are highly indpenendent of the measured value curve shape. It is also working by a high accuracy measuring. The size of the Panel Meter have 96x96mm, 72x72mm and 48x48mm square high quality rectangle electrical current Ampere Meter and Voltage Meter.
Main Technical Data
Summarization
| Product name | Pointer meter |
| Display type | Pointer type |
| Size | 96*96mm,72x72mm, 48x48mm |
| Accuracy | 1.5 |
| Frequency | 50Hz |
| Pointer color | black |
| Shell color | White |
| Certification | CE PSE RoHS SGS |
| Inner structure | Moving iron |
| Working temperature | -10~55°C |
| Name | Precision | Normal Specification | Remark | ||
| AC ammeter
| A | 1.5 | 0.5A-20A | Can be directly connected | |
| A | 2.5 | 30A-100A | Can be directly connected | ||
| A | 2.5 | 10/5A-10k/5A | Secondary current passed by CT | ||
| AC voltmeter | V | 1.5 | 10V-750V | Can be directly connected | |
| kV | 1.5 | 1kV-35kV | 100V secondary voltage passed by voltage transformer | ||
| DC ammeter | uA mA | 2.5 | 50uA-500uA 1mA-500mA | Can be directly connected | |
| A | 1.5 | 1A-15A | Can be directly connected | ||
| A | 1.5 | 15A-3kA | Outer attached shunt 75mV 60mV 50mV | ||
| DC voltmeter | V | 1.5 | 3V-600V | Can be directly connected | |
| kV | 1.5 | 1kV-3kV | Outer attached resistance | ||
| Frequency meter | Hz | 1.0 | 45-55Hz 55-65Hz | 36V,100V, 127V, 220V, 380V | |
| Power meter | KW Var | 2.5 | 100V 380V 380-380kV | 100V secondary voltage passed by voltage;Secondary current passed by Current Transformer 5-10kA/5A | |
| Power factor meter | Cos | 2.5 | COSΦ=0.5-1-0.5 | 100V/5A 220V/5A 380V/5A | |
| Three phase synchroscope | Syn | 2.5 | 100V 220V 380/100V | Gauge outfit integration, with insulation monitor | |
| Max. demand meter | A kA | 3.0 | 10/5A-10k/5A | Secondary current passed by CT | |
Contour & Installation Size unit: mm
| Meter Size | Surface Size | Shell Size | Installation Size | ||||
| Width (D) | Height (H) | Width (D) | Height (H) | Depth (L) | Width (D) | Height (H) | |
| 48 square | 48 | 48 | 43 | 43 | 65 | 42 | 42 |
| 72 square | 72 | 72 | 67 | 67 | 85 | 67 | 68 |
| 96 square | 96 | 96 | 91 | 91 | 80 | 92 | 92 |
