Model No.: FDFD Fully Insulated Female Terminals
Brand: Bond
Type: Single Hole Terminals
Material: Copper
Application: Transmission Of Electrical Signals
Character: Insulation
Species: Terminal
Production Process: Cold Pressing
Shape: Round
Packaging: STANDARD EXPORT PACKAGING
Productivity: 10000
Transportation: Ocean,Air
Place of Origin: China
Certificate: CE,CCC
HS Code: 8536909000
Port: NINGBO
Payment Type: L/C,T/T,D/P
Incoterm: FOB,CFR,CIF,EXW

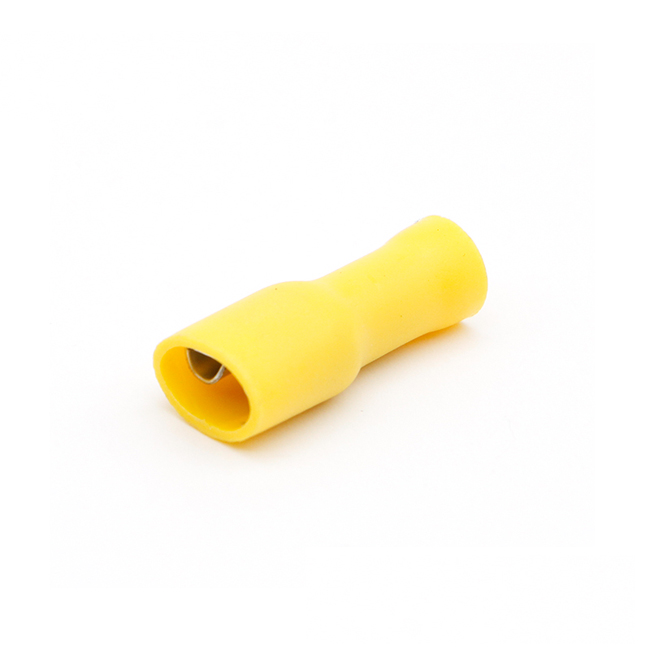

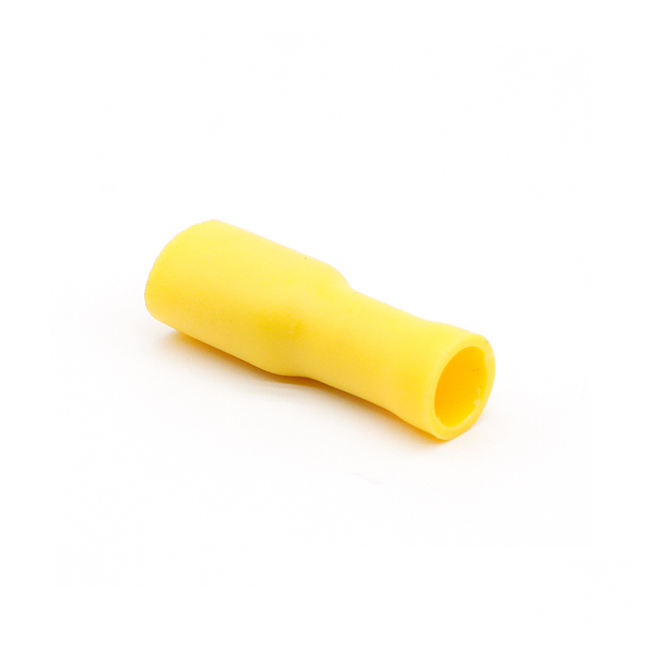

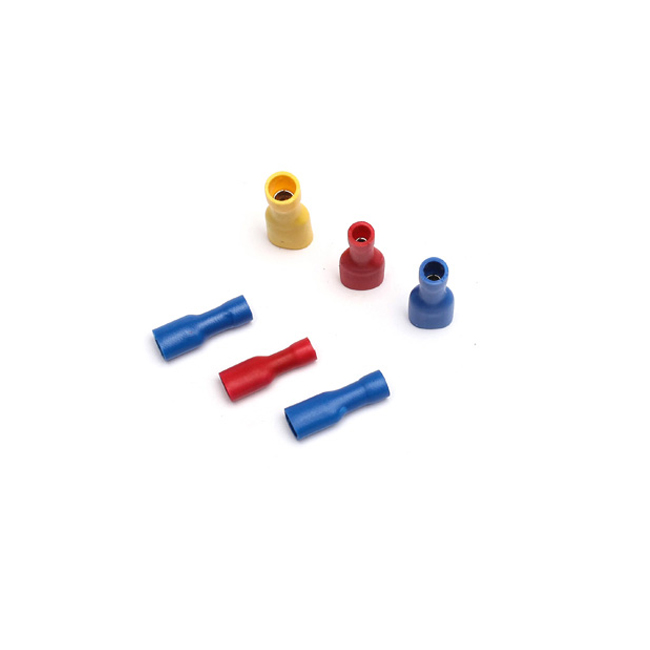

FDFD Fully Insulated Female Terminals
The terminal is applied for kinds of industrial and mining enterprises such as steel smelting,petrochemical industry, electric power, electron, railway, construction, airport, mine, stop, water supply and drain processing factory, port, store, hotel and so on, and it is also for mating and maintenance fittings of device power and connectors imported from abroad, so it is a new generation ideal power supply unit.
Product Description
1. Usage: Wire Connection
2. Feature: Bullet Male type
3. Material: Brass/PVC
4. Sample: free
5. Certification: CE, ROHS
6. Cable size: 0.5~6mm2
7. Max current: 10A
8. Thickness: 0.4mm
It is actually a piece of metal sealed inside the insulating plastic. There are holes at both ends to insert the wire. There are screws for fastening or loosening. For example, two wires, sometimes need to be connected, sometimes need to be disconnected. They can be connected by terminals and can be disconnected at any time without having to solder or entangle them, which is convenient and quick. And very beautiful, the cabinet does not look so messy, with an orderly wiring.
Product Categories : Insulating Terminals
