Model No.: XB4-BL8325,BL8425
Brand: BOND
Type: Normal Open
Number of Switch: Single Control Switch
Structure: Power Built-in Type
Usage: Control Switch
Kind: Single-pole on-off Switch
Contact Type: Type a Contact
Detection Method: Reflection Type
Certification: CE
Packaging: Cartons
Productivity: 10000
Transportation: Ocean,Air
Place of Origin: China
Certificate: CCC
HS Code: 8536500000
Port: Ningbo

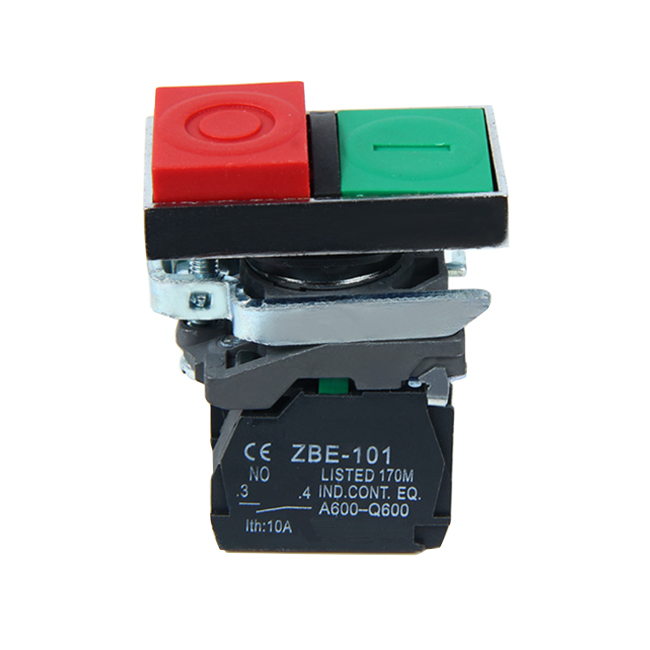

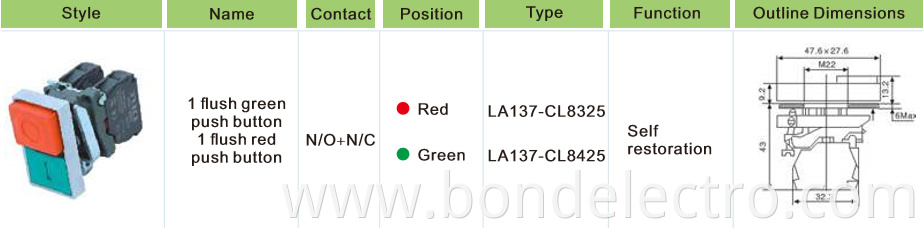

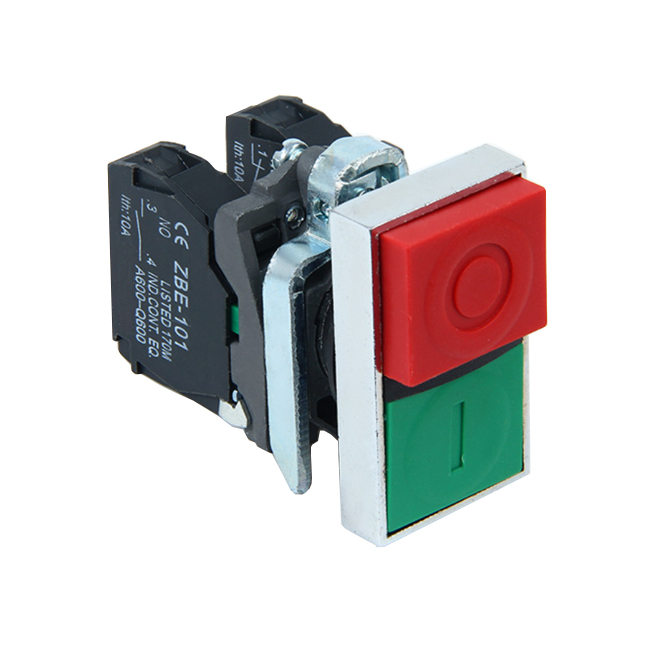

XB4-BL8325 Double Head Pushbutton Switch (our model is LA137-CL8325), are used in controlling circuit of AC voltage up to 660V/AC50Hz or 60Hz,and DC voltage below 400V. It is used for controlling signal and interlocking purposes. The main body of the pushbutton switch adopts zinc alloy and high grade anti-flame plastic. The contact adopts special silver alloy in order to enjoy the benefit of high anti-electrical erosion. Our products comply with GB/T14048.1 and IEC60947-5-1, all products are CE,ISO9001,Rohs certified.
XB4-BL8325 Double Head Pushbutton Switch can work as 1NO+1NC.
Main techincle data as follows:
Operation temperature:-5℃~+40℃
Operation humidity: 45% - 85%
Contact resistance: ≤50mΩ
Rated insulation voltage:Ui 660V
Conventional thermal current:Ith 10A
Rated operation voltage:Ue 380V, 220V, 110V, 48V, 24V
Rated operation current: AC-15 2.5A 4.5A 6A 8A - DC-13 - 0.3A 0.6A 1.3A 2.5
Electric durability: 50 x 100000
Product Categories : Pushbutton Switches > XB4 Series Pushbtton Switch
