Ningbo Bond Industrial Electric Co., Ltd.


Home > Products > Pushbutton Switches > XB4 Series Pushbtton Switch > XB4-BK3365 Select Switch with Light

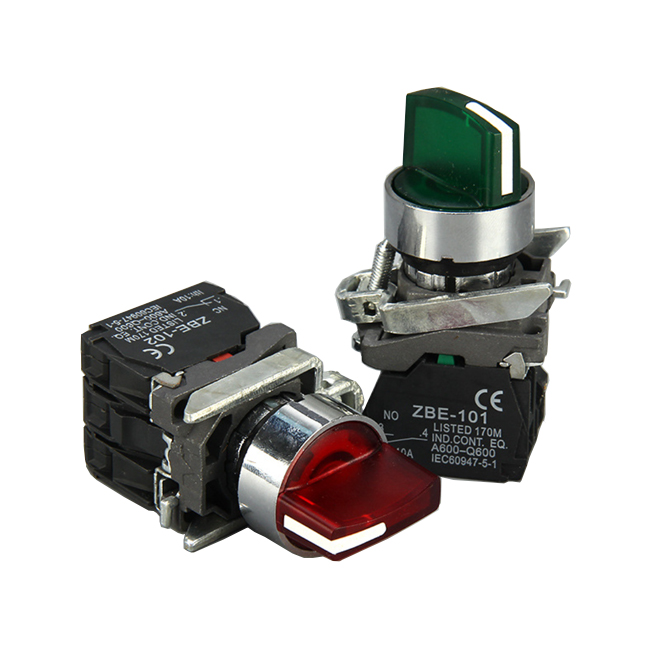

XB4-BK3365 Select Switch with Light
XB4-BK3365 Select Switch with Light

XB4-BK3365 Select Switch with Light

Min. Order: 100 Piece/Pieces

Basic Info

    Model No.: XB4-BK3365,BK3465

    Type: Normal Open

    Number of Switch: Single Control Switch

    Structure: Power Built-in Type

    Usage: Control Switch

    Kind: Single-pole on-off Switch

    Contact Type: Type a Contact

    Detection Method: Reflection Type

    Certification: CCC, CE

Additional Info

    Packaging: Cartons

    Productivity: 10000

    Brand: BOND

    Transportation: Ocean,Air

    Place of Origin: China

    Certificate: CCC

    HS Code: 8536500000

    Port: Ningbo

Product Description

XB4-BK3365 Select Switch with Light (our model is LA137-CK3365), are used in controlling circuit of AC voltage up to 660V/AC50Hz or 60Hz,and DC voltage below 400V. It is used for controlling signal and interlocking purposes. The main body of the Pushbutton Switch adopts zinc alloy and high grade anti-flame plastic. The contact adopts special silver alloy in order to enjoy the benefit of high anti-electrical erosion. Our products comply with GB/T14048.1 and IEC60947-5-1, all products are CE,ISO9001,Rohs certified.

XB4-BK3365 Select Switch with Light(Indicator), it can be LED light.

Main techincle data as follows:

Operation temperature:-5~+40

Operation humidity: 45% - 85%

Contact resistance: ≤50mΩ

Rated insulation voltage:Ui 660V

Conventional thermal current:Ith 10A

Rated operation voltage:Ue 380V, 220V, 110V, 48V, 24V

Rated operation current: AC-15 2.5A 4.5A 6A 8A - DC-13 - 0.3A 0.6A 1.3A 2.5

Electric durability: 50 x 100000

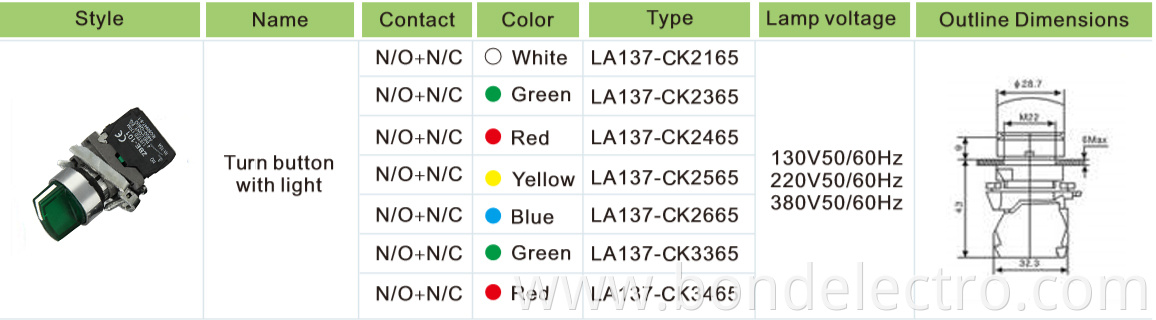

XB4-BK Select Switch

Looking for ideal XB4-BK3365 Pushbutton Switch Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the XB4-BK3365 Select Switch are quality guaranteed. We are China Origin Factory of LAY4-BK3365 Select Switch with Light. If you have any question, please feel free to contact us.

Product Categories : Pushbutton Switches > XB4 Series Pushbtton Switch
