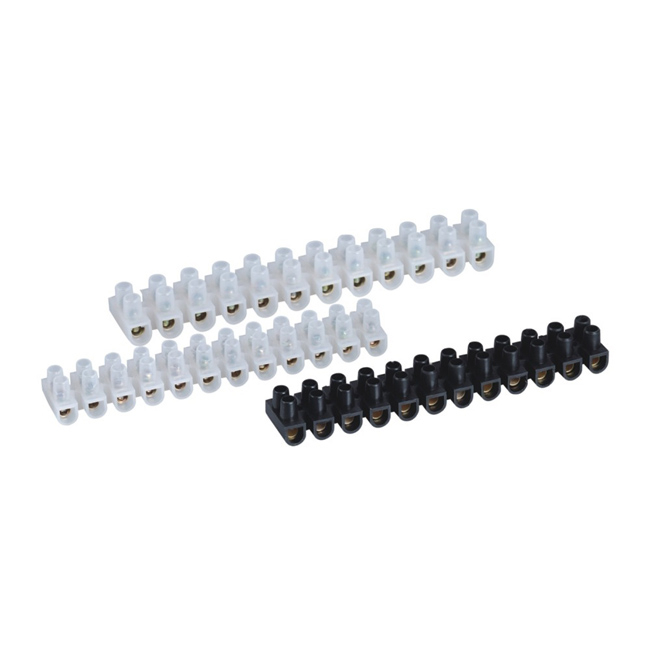

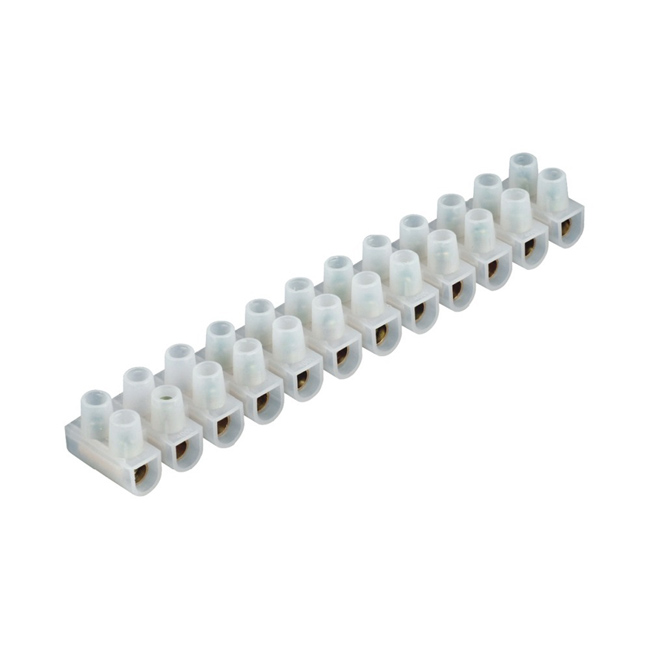

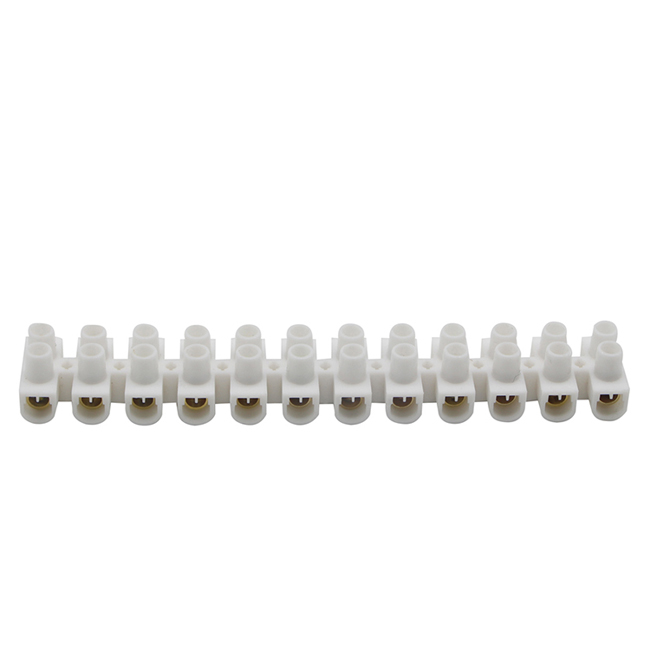

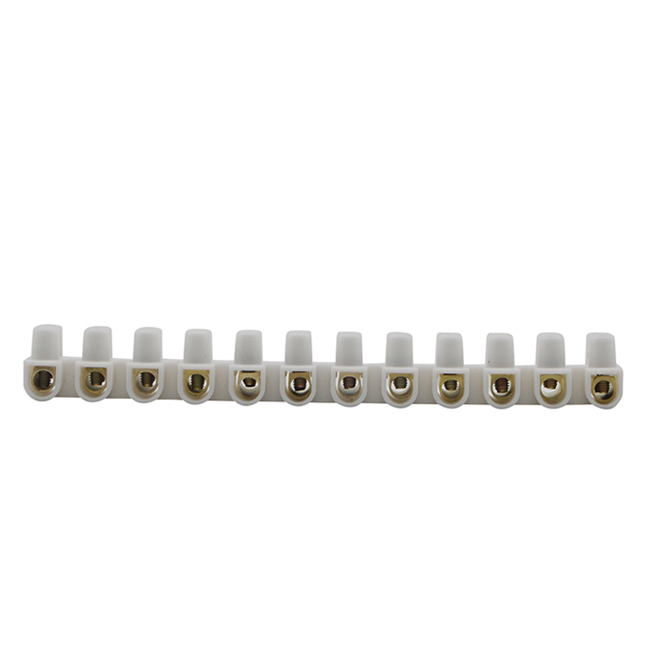

U(W) type Terminal Connectors

Payment Type:

L/C,T/T,D/P

Incoterm:

FOB,CIF

Min. Order:

100 Bag/Bags

Transportation:

Ocean,Air

Port:

NINGBO

Quantity:



Inquire Add to Basket

Product Description

Overview

Product Attributes

Model No.: U(W) type Terminal Connectors

Application: PCB

Environmental Protection: General

Connection Mode: In-Line Connector

Shape: Round

Contact Termination Form: Screws Fixed

Type: Filter Electric Connector

Character: Insulation

Production Process: Cold Pressing

Interface Type: AC/DC

Supply Ability & Additional Information

Packaging: STANDARD EXPORT PACKAGING

Transportation: Ocean,Air

HS Code: 8536909000

Port: NINGBO

Payment Type: L/C,T/T,D/P

Incoterm: FOB,CIF

Packaging & Delivery

Selling Units:: Bag/Bags

Package Type:: STANDARD EXPORT PACKAGING

The U(W) type Terminals Connectors Specifications:
1. Manufactory
2. Material:PA,PE,PP
3. Color:Natural Black White
4. Certification:CE RoHS
5. Inserts:Brass
The Terminal Connectors:
Circuit of AC 50Hz or 60Hz
Voltage 380V
Current from 3A to 150A
For connecting the round copper conductors
The Material U(W) type Terminals Connectors :
Plastic have PA, PP, PE.
PA , Polyamide 66, 94-2 grade .Inflaming retarding,good resist dissolve ,good bounce impact fore. Working termpertaure:-30℃ to 110℃.
PE, Polyethylene, good pliability, transparence, extensibility, resist dissolve, radiation. Working termpertaure:-40℃to 65℃
PP, Polypropylene, inflaming retarding, low transparency, low rigidity, good bounce impact force.Working Termperature:-40℃ to 90℃

Brass insert and Steel screw

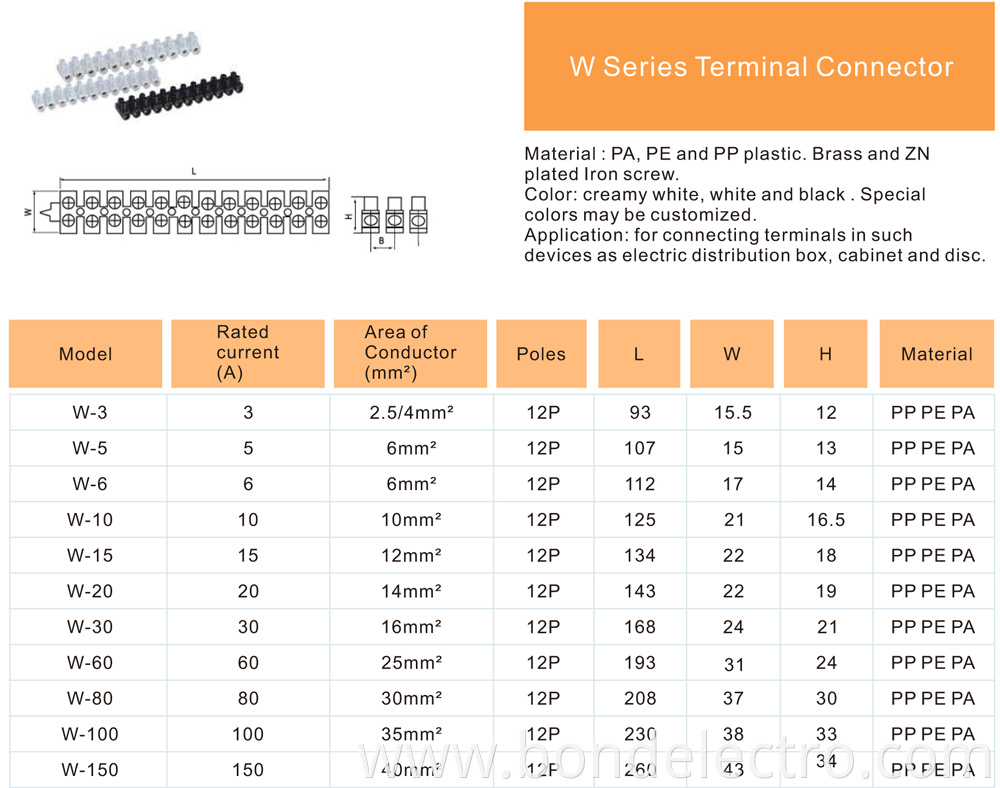

U(W) type terminal blocks parameters
