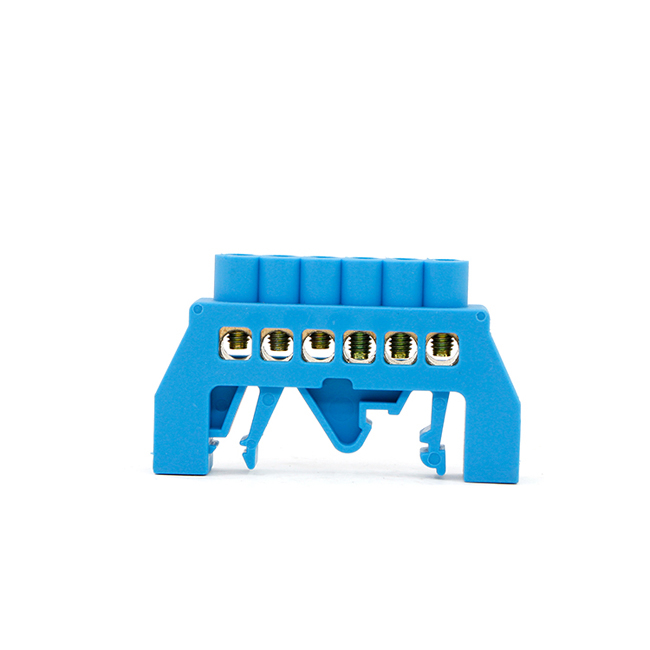

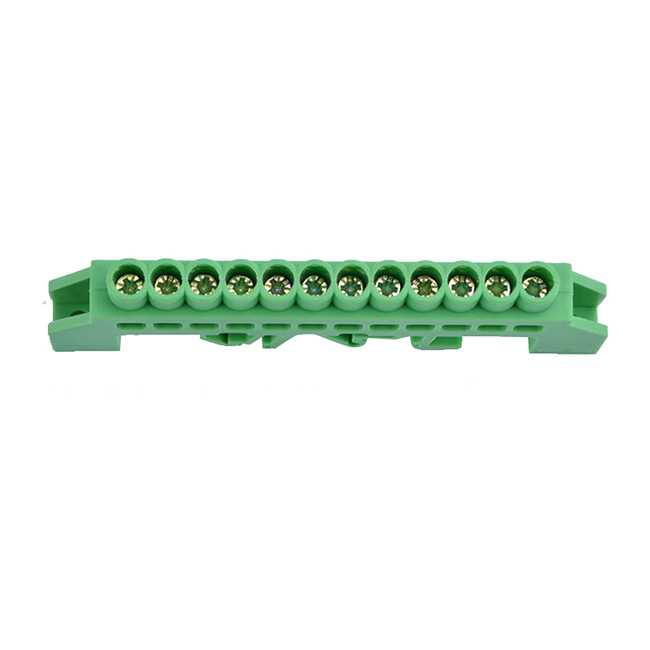

BHS03 Series Brass Bus bar Screw Terminal

Payment Type:
L/C,T/T,D/P
Incoterm:
FOB,CIF
Min. Order:
100 Bag/Bags
Transportation:
Ocean,Air
Port:
NINGBO
Share:
  • Product Description
Overview
Product Attributes

Model No.BHS03-0609/BHS03-0812

BrandBond

ApplicationPCB

Environmental ProtectionGeneral

Connection ModeIn-Line Connector

ShapeRound

Contact Termination FormScrews Fixed

TypeSealed Electric Connector

CharacterInsulation

Production ProcessCold Pressing

Interface TypeAC/DC

Supply Ability & Additional Information

PackagingSTANDARD EXPORT PACKAGING

Productivity100000

TransportationOcean,Air

Place of OriginChina

Supply Ability1000000

CertificateCE,CCC

HS Code8536909000

PortNINGBO

Payment TypeL/C,T/T,D/P

IncotermFOB,CIF

Packaging & Delivery
Selling Units:
Bag/Bags
Package Type:
STANDARD EXPORT PACKAGING

BHS03 Series Brass Bus bar Screw Terminal

Product Introduction
Connection with or without ferrulesBrass Terminal Block Connector
ABS, good resist disslove, good bounce impact fore, working temperature: -20° C to 70 ° C
PE polypropylene, inflaming retarding, low transparency, low rigidity, excellent bounce impact force, working temperature: -30° C to 110° C
Brass screw in iron plated zinc
Maximum load: 160A

Maximum Voltage:750Ⅴ

Rated current:125A

Rated Voltage:450V

According sample picture or customized.
Quality warranty!
Competive price!
Confirm to standard EN60947-1
The plastic part can be made into green color/blue color.

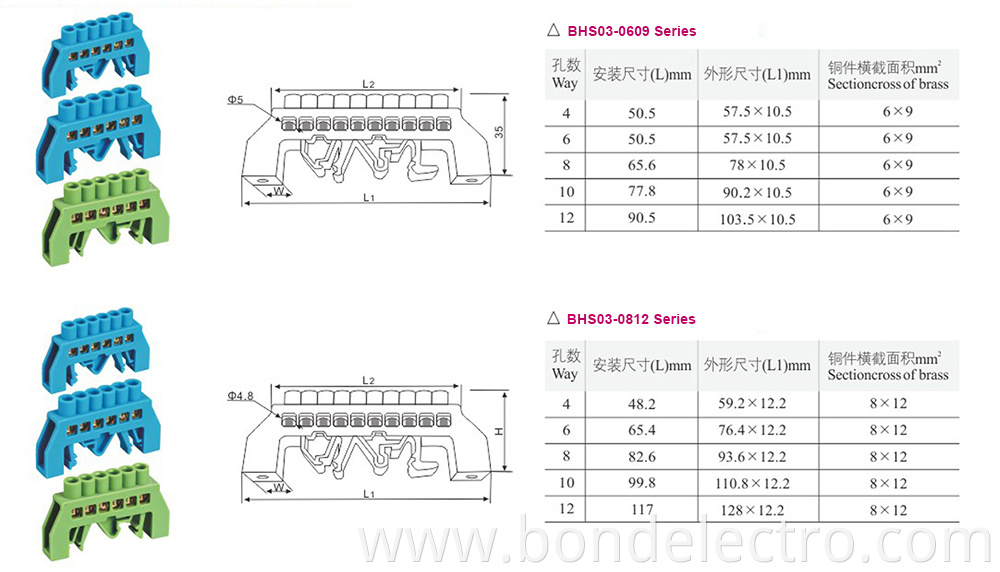

BHS03 Series Terminal Blocks
