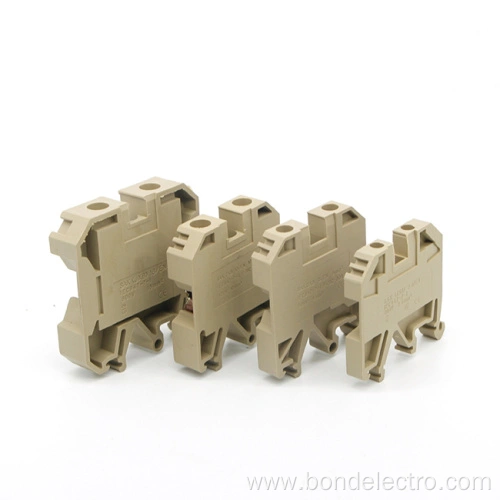

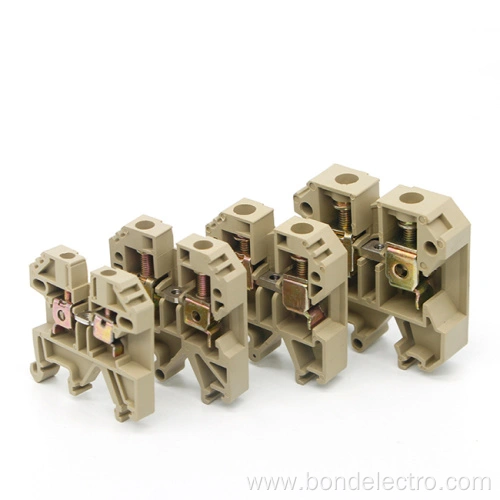

Model No.: JXB and JB series Terminal Block
Application: PCB
Environmental Protection: General
Connection Mode: In-Line Connector
Shape: Round
Contact Termination Form: Welding Connection
Type: Sealed Electric Connector
Character: Insulation
Production Process: Cold Pressing
Interface Type: AC/DC
Packaging: STANDARD EXPORT PACKAGING
Transportation: Ocean,Air
HS Code: 8536909000
Port: NINGBO
Payment Type: L/C,T/T,D/P
Incoterm: FOB,CIF
Characteristics
1.Small volume, full specification, series JXB's big current terminal use reinforced acccssories to install steel pressing-wire frame and wire diversion board technology in order to guaranjtee the contact reliable;
2.The stand uses creamed-yellow and grey color, the connecting-grounk pedestal uses yellow and green color with moer modern sense.
General
JXB series combined Terminal Blocks mainly use Germany Woodmeler's connection technology, and designed and made at home. Technology targets conforms to the standard or IEC60947-1, IEC60947-7-1, GB14048.1. However, JXB is only for mountin gon, increase the high current terminal series.
Explain
(1) End voltage/thick 1.5mm cream
(2) center connection piece:10 position, can be divided into 2, 3 or 4 position.
(3) Universal end fixed piece
(4) Printing number continuous mark stripe
Product Categories : Terminal Blocks
