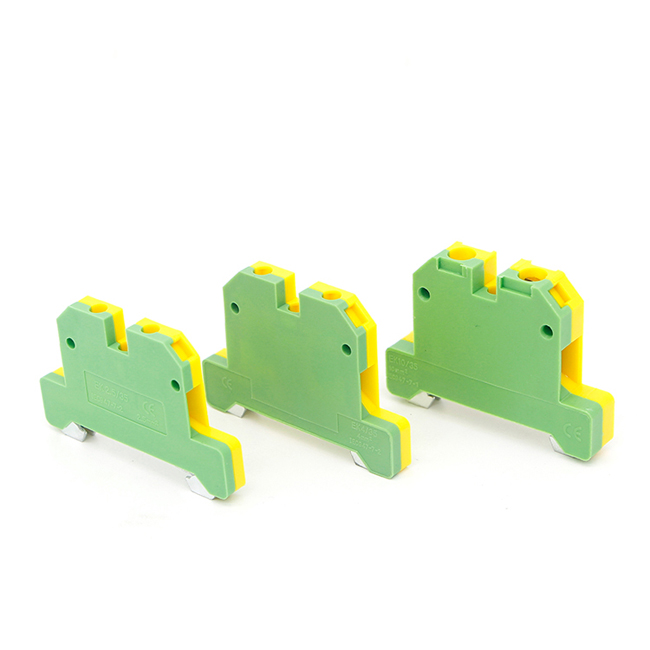

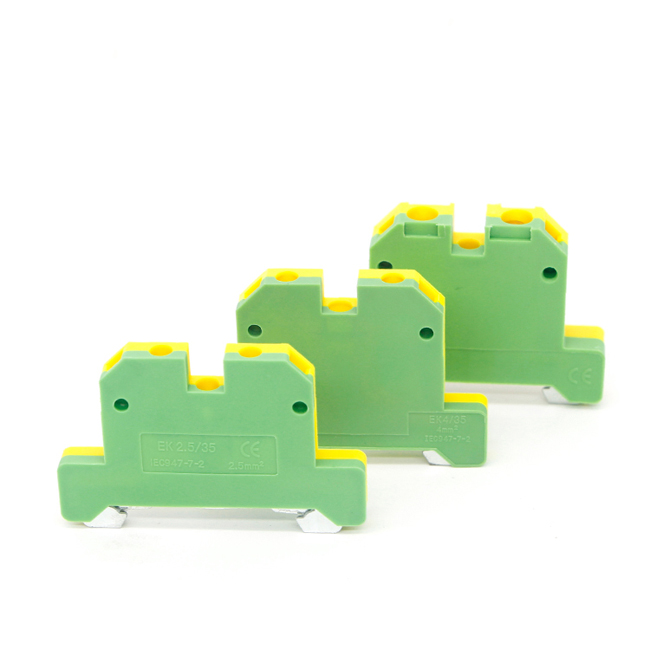

Model No.: EK series Terminal Blocks
Application: PCB
Environmental Protection: General
Connection Mode: In-Line Connector
Shape: Round
Contact Termination Form: Pressure Welding
Type: Sealed Electric Connector
Character: High Temperature Resistance
Production Process: Welding
Interface Type: AC/DC
Packaging: STANDARD EXPORT PACKAGING
Transportation: Ocean,Air
HS Code: 8536909000
Port: NINGBO
Payment Type: L/C,T/T,D/P
Incoterm: FOB,CIF
Explain
(1) End voltage/thick 1.5mm cream
(2) center connection piece:10 position, can be divided into 2, 3 or 4 position.
(3) Universal end fixed piece
(4) Printing number continuous mark stripe
We own advanced producing equipment in the world,make sure of completely new managing concept an strong professional technology force to professional technology force to produce high quality products that confirm with international standard.
General
JXB series combined Terminal Blocks mainly use Germany Woodmeler's connection technology, and designed and made at home. Technology targets conforms to the standard or IEC60947-1, IEC60947-7-1, GB14048.1. However, JXB is only for mountin gon, increase the high current terminal series.
Characteristics
1.Small volume, full specification, series JXB's big current terminal use reinforced acccssories to install steel pressing-wire frame and wire diversion board technology in order to guaranjtee the contact reliable;
2.The stand uses creamed-yellow and grey color, the connecting-grounk pedestal uses yellow and green color with moer modern sense.
Product Categories : Terminal Blocks
