Model No.: BKM1-63H
Brand: BOND
Breaking Capacity: Low Voltage Circuit Breakers
Operation: Electric Type
Speed: Normal Type Circuit Breaker
Arc-extinguishing Medium: Air
Installation: Fixed
Structure: MCB
Poles Number: 3
Type: Circuit Breaker
Function: Conventional Circuit Breaker
Certification: ISO9001-2000
Packaging: Cartons
Productivity: 100000
Transportation: Ocean,Air
Place of Origin: China
Supply Ability: 500000
Certificate: CCC
HS Code: 8536200000
Port: Ningbo
Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,EXW

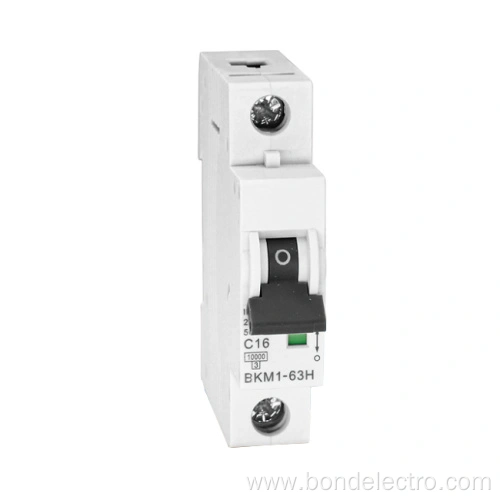

BKM1-63H 10KA TUV/CE Certified 1/2/3/4P B/C/D curve 1-63A mini circuit breaker mcb (Interruptor)
| Standard | IEC/EN 60898-1 | ||
| Electrical | Rated current in | A | 1 2 3 4 6 10 16 20 25 32 40 50 63 |
| Poles |
| 1P,1P+N, 2P, 3P,3P+N, 4P | |
| Rated voltage | V | 230/400 | |
| Insulation voltage | V | 500 | |
| Rated frequency | Hz | 50/60 | |
| Rated breaking capacity | A | 6000/10000 | |
| Rated impulse withstand voltage (1.2/50) | V | 4000 | |
| Dielectric test voltage at and ind.Freq.for 1min | KV | 2 | |
| Pollution degree |
| 2 | |
| Thermal-magnetic release characteristic |
| B(3-5In) , C(5-10In) , D(10-20In) | |
| Mechanical | Electrical life |
| 8000 |
| Mechanical life |
| 20000 | |
| Contact position indicator |
| Yes | |
| Protection degree |
| IP 20 | |
| Reference temperature of setting of thermal element | °C | 30 | |
| Ambient temperature(with daily average≤35°C) | °C | -5~+40 | |
| Storage temperature | °C | -25...+70 | |
| Installation | Terminal connection type |
| Cable/U-type busbar/Pin-type busbar |
| Terminal size top/bottom for cable | mm² | 25 | |
| AWG | 18-3 | ||
| Terminal size top/bottom for busbar | mm² | 25 | |
| AWG | 18-3 | ||
| Tightening torque | N*m | 2.0 | |
| In-lbs. | 22 | ||
| Mounting |
| 35mm DIN rail | |
| Connection |
| From top and bottom | |
Product Categories : Circuit Breakers
