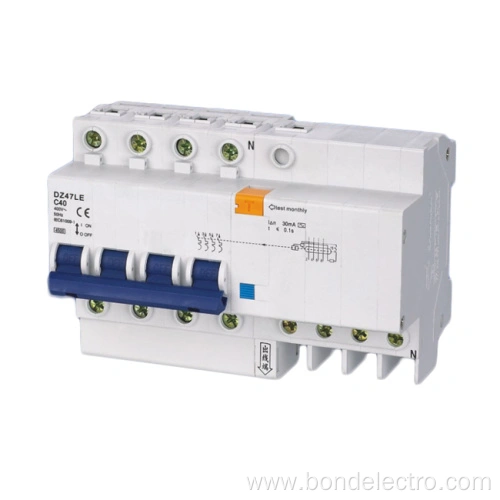

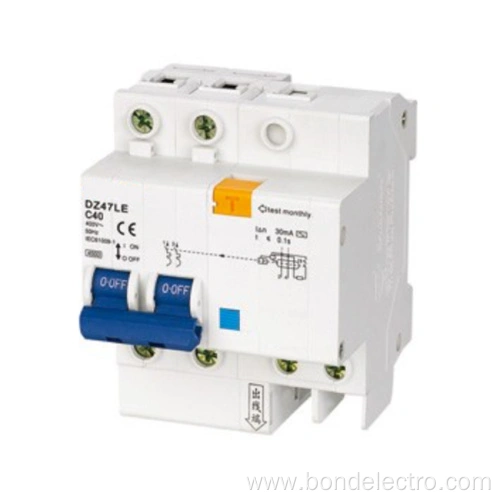

Model No.: DZ47-63LE 1P+E, 2P,2P+E,3P, 3P+E, 4P and 4P+E
Brand: BOND
Breaking Capacity: Low Voltage Circuit Breakers
Operation: Electric Type
Speed: Normal Type Circuit Breaker
Arc-extinguishing Medium: Air
Installation: Fixed
Structure: MCB
Poles Number: 3
Type: Circuit Breaker
Function: Conventional Circuit Breaker
Certification: ISO9001-2000
Packaging: Cartons
Productivity: 100000
Transportation: Ocean,Air
Place of Origin: China
Supply Ability: 500000
Certificate: CCC
HS Code: 8536200000
Port: Ningbo
Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,EXW
Electrical Features OF RCBO(DZ47-63LE ELCB)
Type (wave form of the earth leakage sensed): AC, A
Thermo-magnetic release characteristic: B, C
Rated current In MCB+add-on RCD block: 6, 10, 16, 20, 25, 32, 40, 50, 63A
RCBO Poles: 2P(1P+N), 4P (3P+N)
Rated voltage Ue: 240/415V
Rated sensitivity In MCB+add-on RCD block: 0.03, 0.1, 0.3A
RCBO Rated residual making and breaking capacity Im: 500A(In40A) 630(In40A)
Rated short-circuit capacity lcn: 4, 500A
Break time under In: 0.1s
RCBO Rated frequency: 50/60Hz
Rated impulse withstand voltage (1.2/50)Uimp: 4, 000V
Dielectric TEST voltage at ind. Freq. For 1min: 2kV
Insulation voltage Ui: 500V
RCBO Pollution degree: 2
Mechanical Features OF RCBO
Electrical life: 2, 000
Mechanical life: 4, 000
RCBO Protection degree: IP20
Ambient temperature (with daily average35): -5...+40
Storage temperation: -25...+70
Installation OF RCBO
Terminal size top/bottom for cable: 25mm2
RCBO Terminal size top/bottom for busbar: 25mm2
Tightening torque 2.0 N*m
Mounting: On DIN rail EN 60715 (35mm) by means of fast clip device
Connection: From top and bottom (for combined type)
From top (MCB+add-on RCD block)

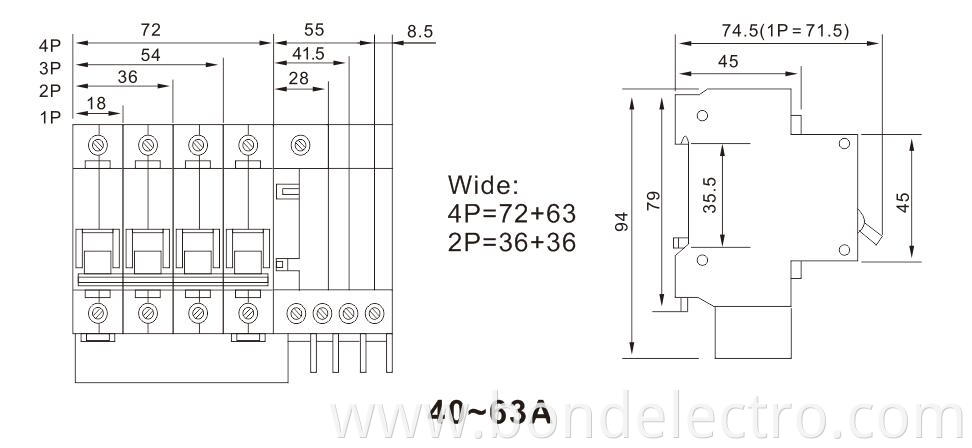

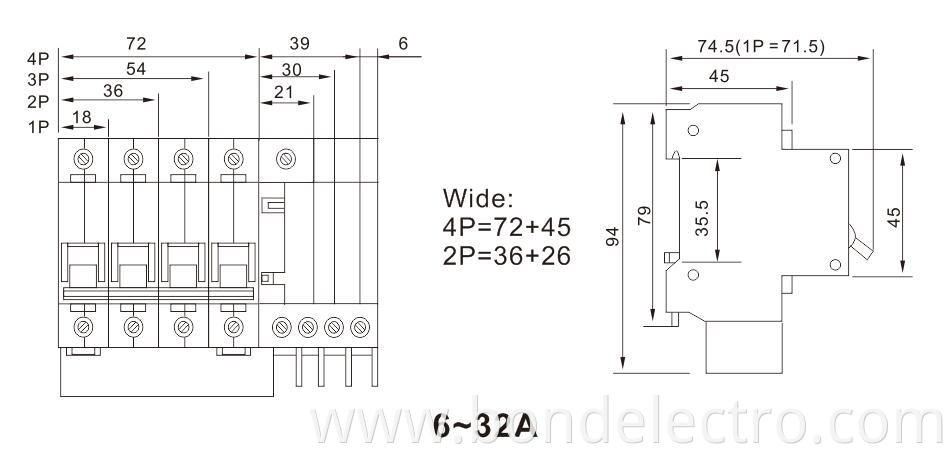

Dimension OF RCBO(mm)
