Home > Products > Circuit Breakers > JXL1 series Residual Current Breaker

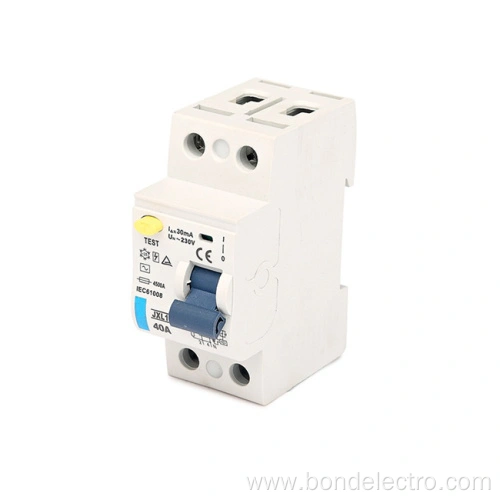

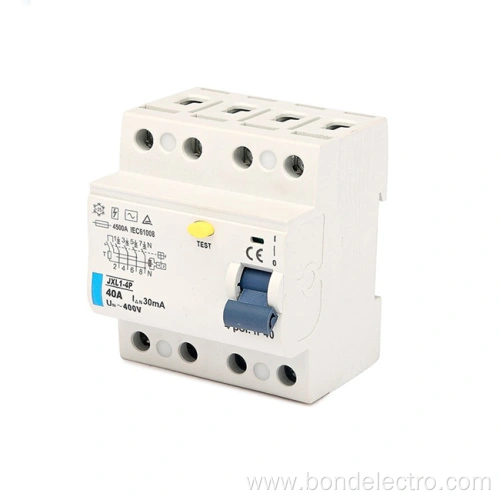

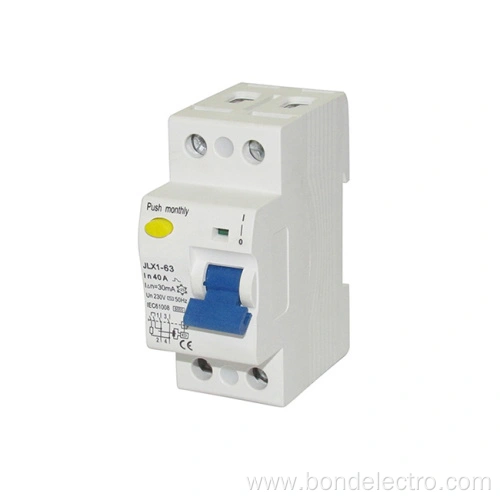

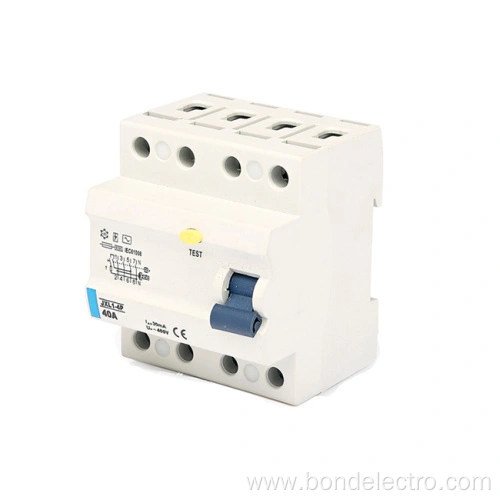

JXL1 series Residual Current Breaker
  • JXL1 series Residual Current Breaker
  • JXL1 series Residual Current Breaker
  • JXL1 series Residual Current Breaker
  • JXL1 series Residual Current Breaker

JXL1 series Residual Current Breaker

Payment Type:
L/C,T/T
Incoterm:
FOB,CFR,CIF,EXW
Min. Order:
100 Piece/Pieces
Transportation:
Ocean,Air
Port:
Ningbo
Share:
  • Product Description
< >
Overview
Product Attributes

Model No.: JXL1 2P 4P

Brand: BOND

Breaking Capacity: Low Voltage Circuit Breakers

Operation: Electric Type

Speed: Normal Type Circuit Breaker

Arc-extinguishing Medium: Air

Installation: Fixed

Structure: MCB

Poles Number: 3

Type: Circuit Breaker

Function: Conventional Circuit Breaker

Certification: ISO9001-2000

Supply Ability & Additional Information

Packaging: Cartons

Productivity: 10000

Transportation: Ocean,Air

Place of Origin: China

Supply Ability: 50000

Certificate: CCC

HS Code: 8536200000

Port: Ningbo

Payment Type: L/C,T/T

Incoterm: FOB,CFR,CIF,EXW

Packaging & Delivery
Selling Units:
Piece/Pieces
Package Type:
Cartons

JXL1 series Residual Current Circuit Breaker  (without over-current protection)

is the new designed product of our company. Which is widely used in industrial area, commercial area, tall building and civil house. When there is human electricity shock or if the leakage current of the line exceeds the prescribed value, it will

cut off the power rapidly to protect human safety and prevent the accident due to the current leakage.

Features of this new designed Residual Current Circuit Breaker (RCCB)

Model: JXL1

Poles:2P, 4P

Standards: IEC61008-1/EN61008-1

Rated current (In) :10A,16A,25A,32A,40A,50A,63A and 80A

Rated voltage (Ue) : 240V 2P /415V 4P

Rated frequency: 50/60Hz

Rated insulation voltage (Ui): 500V

Rated residual operating current (IΔn): 30mA,100mA,300mA,500mA

Rated residual un-operating current (IΔno): 15mA,50mA,150mA,250mA

Sensibility: A & AC

Maximum operating time: IΔ=IΔn   t≤0.1s,   IΔ=5IΔn   t≤0.04s

Rated making and breaking capacity (Im): In≤50A 500mA, In≤63A 630mA

Limited value of un-operating current: 6In

Rated limiting short-circuit current (Inc): 4500A

Machanical life: 100000

Electric life: 4000

Protection degree: IP20

Enviroment temperature: -5℃ ~ +40℃

Installation level: ≤2000m

Packing info: 2P  100pcs/ctn,G.W.: 23kgs/ctn, 47*42*17.5cm/ctn;  4P 50pcs/ctn,G.W.: 20kgs/ctn, 47*40*17.5cm/ctnWir

Operation principle figure and Dimention of the JXL1 RCCB

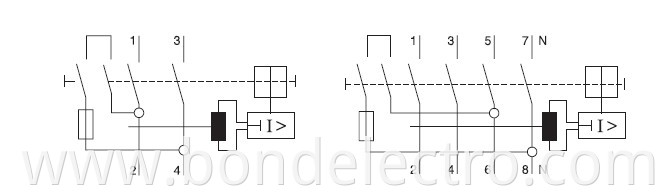

operation principle figure for JXL1 RCCB

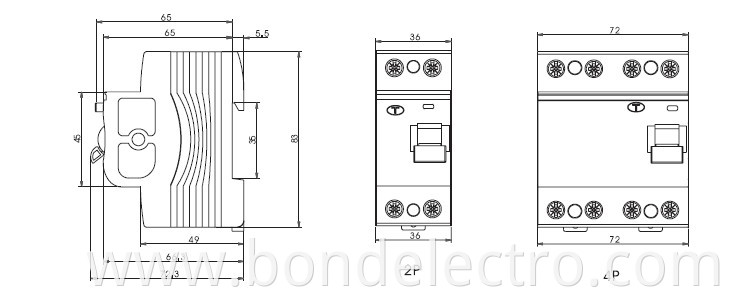

Dimension For Jxl1 Rccb
