CM1 High Quality MCCB,CM1 Moulded Case Circuit Breaker,CM1 MCCB 3Pole 400A

Home > Products > Circuit Breakers > CM1 series Moulded Case Circuit Breaker

CM1 series Moulded Case Circuit Breaker

Share to:
    Payment Type: L/C,T/T
    Incoterm: FOB,CFR,CIF,EXW
    Min. Order: 100 Piece/Pieces
    Delivery Time: 30 Days

Basic Info

Model No.: CM1-63L/M,CM1-225L/M,CM1-250L/M,CM1-400L/M,CM1-630L/M

Breaking Capacity: Low Voltage Circuit Breakers

Operation: Electric Type

Speed: Normal Type Circuit Breaker

Arc-extinguishing Medium: Air

Installation: Fixed

Structure: MCB

Poles Number: 3

Type: Circuit Breaker

Function: Conventional Circuit Breaker

Certification: CCC, CE, ISO9001-2000

Additional Info

Packaging: Cartons

Productivity: 10000

Brand: BOND

Transportation: Ocean,Air

Place of Origin: China

Supply Ability: 50000

Certificate: CCC

HS Code: 8536200000

Port: Ningbo

Product Description

CM1 series Moulded Case Circuit Breaker is one of products developed and manufactured by adopting international advanced technology. It is supplied with rated insulating voltage 550 and 800V and used for circuit of AC 50/60Hz, rated operating voltage AC 400V (or below), rated operating current up to 1600A for infrequent changing over and starting of the motors.The products conforms to IEC60947-2 standard.

The rated insulation voltage of the circuit breaker is 800v.

It`s apply to the circuit` infrequent transitions which is 50Hz (60Hz), rated operating voltage AC690V and below (DC 250V and below), rated current 10A or 1250A as well as the use of motors with infrequent starts.

The circuit breaker which has the device with overload, short circuit and undervoltage protection can protect the prevent the circuit and the equipment of power supply from being damaged.

The circuit breaker has characteristics with a small size, high breaking capacity, short arc (part of the standard zero arc), anti-vibration to meet the demand for industrial electricity.

What`s more,it is an ideal product for the use of land and ships.

Normal Working Conditions

1.Elevation:≤2000m

2.Enviroment temperature:-5℃~+40℃(+45℃for Marine products)

3.the tolerance of moist air effect; the tolerance of salt mist,oil mist, mould and nuclear radiation effert

4.Maximum inclination of 22.5 degrees.

5.It can work reliably when the ship is in normal vibration; it can work reliably under the earthquake(4g)

6.And without the risk of explosion in the medium ,and medium nonmetal corrosion and damage to the insulation of gas and dust where conductive. In the absence of rain and snow hit the lacal.

CM1 Moulded Case Circuit Breaker (MCCB) Main Data

Type

Rated current
(A)

No.of
Poles

Rated insulation
Voltage(V)

Rated Operating
Voltage(V)

Arcing Over
Dist.(mm)

Ultimate Short
Circuit Breaking
Capacity(kA)

CM1-63L

6,10,16,20,25,32
40,50,53,63

3P, 4P

690V

380V

0

25

CM1-63M

0

50

CM1-100C

10,16,20,25,32
40,50,53,63,80,100

0

25

CM1-100L

0(0≤50)

35

CM1-100M

0(0≤50)

50

CM1-100H

0(0≤50)

85

CM1-225C

100,125,160,180
200,225

0≤50

25

CM1-225L

0≤50

35

CM1-225M

0≤50

50

CM1-225H

0≤50

85

CM1-400C

225,250,315
350,400

0≤50

35

CM1-400L

0≤50

50

CM1-400M

0≤50

65

CM1-400H

0≤50

85

CM1-630C

400,500,630

0≤50

35

CM1-630L

0≤100

50

CM1-630M

0≤100

65

CM1-630H

0≤100

100

CM1-800M

630,700,800

0≤100

65

CM1-800H

0≤100

100

CM1 MCCB and its accessories

Cm1 Mccb Product Overview


Looking for ideal CM1 High Quality MCCB Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the CM1 Moulded Case Circuit Breaker are quality guaranteed. We are China Origin Factory of CM1 MCCB 3Pole 400A. If you have any question, please feel free to contact us.

Product Categories : Circuit Breakers

Product Images

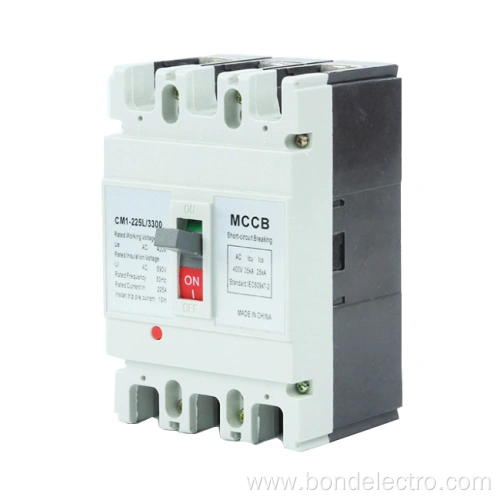

  • CM1 series Moulded Case Circuit Breaker

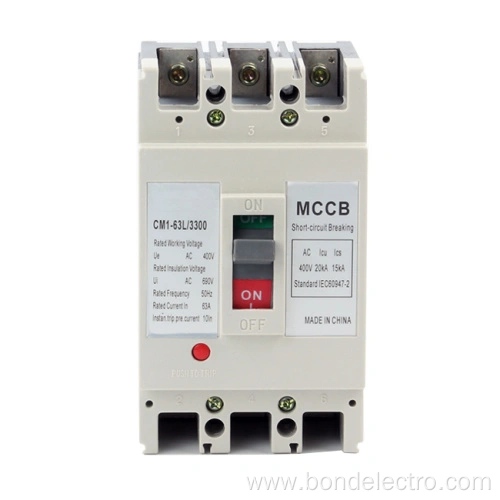

  • CM1 series Moulded Case Circuit Breaker

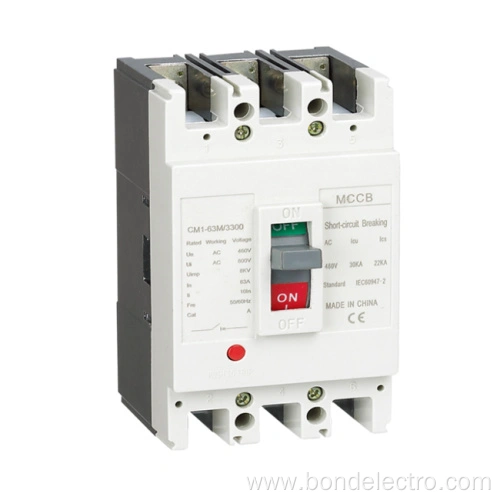

  • CM1 series Moulded Case Circuit Breaker

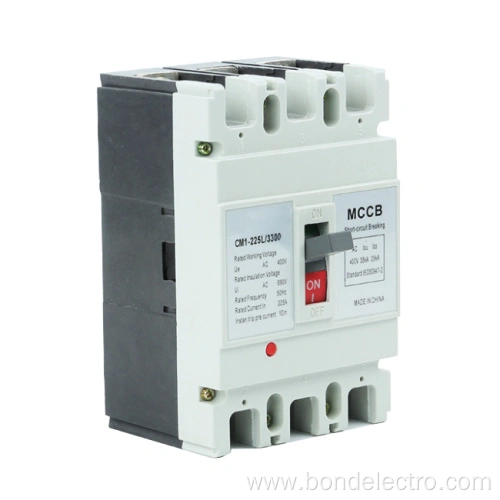

  • CM1 series Moulded Case Circuit Breaker

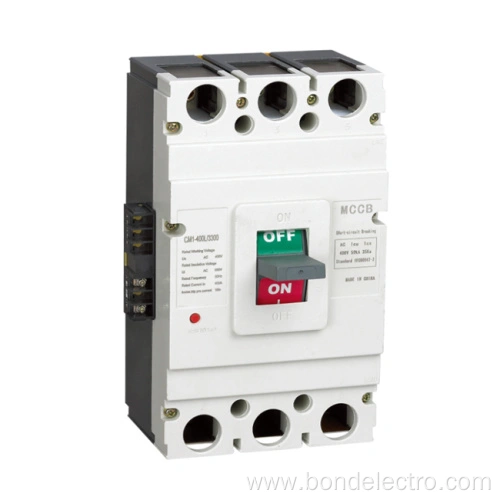

  • CM1 series Moulded Case Circuit Breaker
