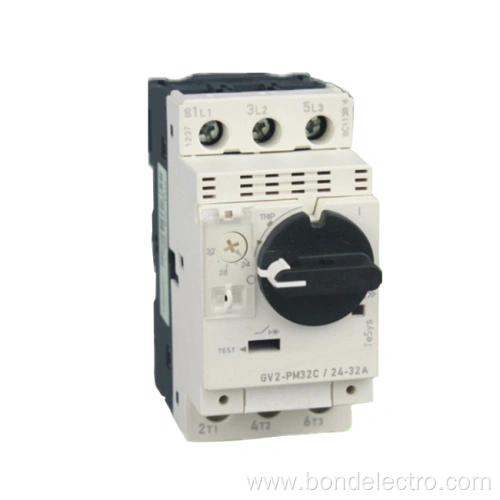

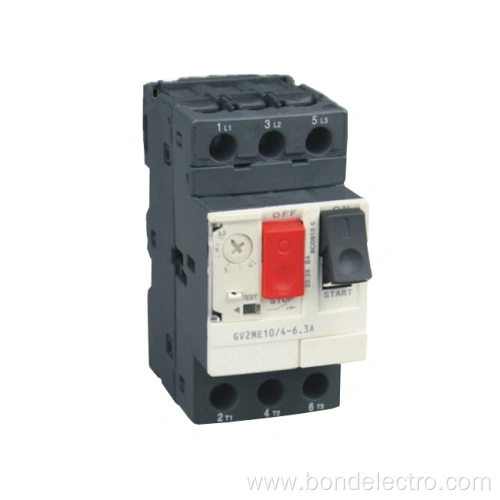

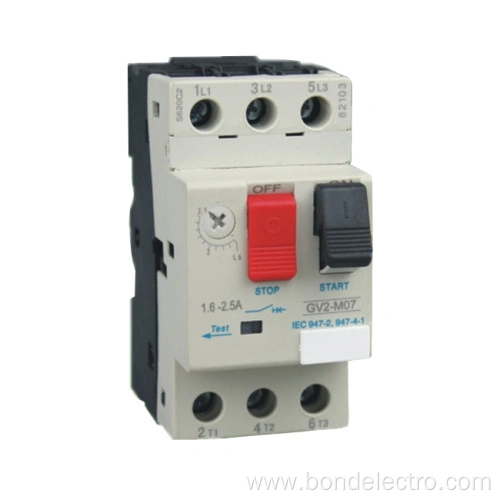

GV2 series Motor Protection Circuit Breaker

Payment Type:
L/C,T/T
Incoterm:
FOB,CFR,CIF,EXW
Min. Order:
100 Piece/Pieces
Transportation:
Ocean,Air
Port:
Ningbo
Share:
  • Product Description
Overview
Product Attributes

Model No.GV2-M, GV2-ME,GV3-M,

BrandBOND

Breaking CapacityLow Voltage Circuit Breakers

OperationElectric Type

SpeedNormal Type Circuit Breaker

Arc-extinguishing MediumAir

InstallationFixed

StructureMCB

Poles Number3

TypeCircuit Breaker

FunctionConventional Circuit Breaker

CertificationISO9001-2000

Supply Ability & Additional Information

PackagingCartons

Productivity10000

TransportationOcean,Air

Place of OriginChina

Supply Ability50000

CertificateCCC

HS Code8536200000

PortNingbo

Payment TypeL/C,T/T

IncotermFOB,CFR,CIF,EXW

Packaging & Delivery
Selling Units:
Piece/Pieces
Package Type:
Cartons

GV2,GV3 series Motor Protection Circuit Breaker, uses the modular desigh, the contour is artistic, the volume is small, breakersprotects, inside sets Hot Relay, the function is strong, the versatility is good. DZ518(GV2,GV3) series motor protection circuit breaker are mainly used for the overload and short-circuit protection for motors in the circuit of AC50/60Hz, rated operating voltage up to 690V, rated operating current from 0.1A to 80A, as the full-voltage starters to start and cut off motors under the AC3 load, and for the circuit protection in the circuit of 0.1A--80A.

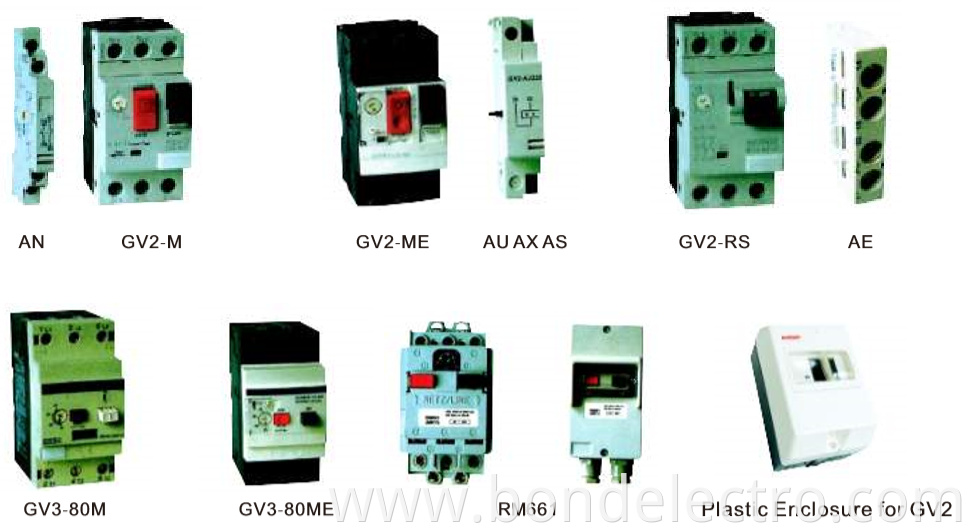

GV2-M MPCB Specification 3



Specification:

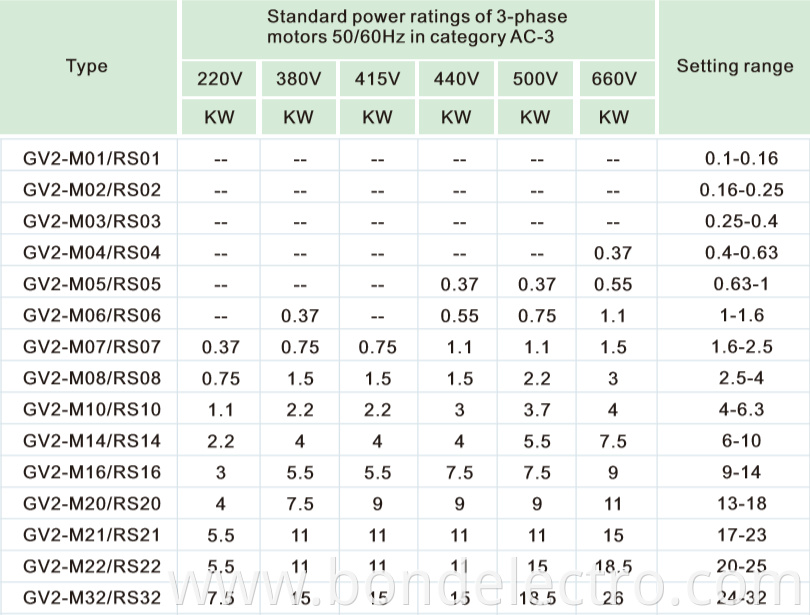

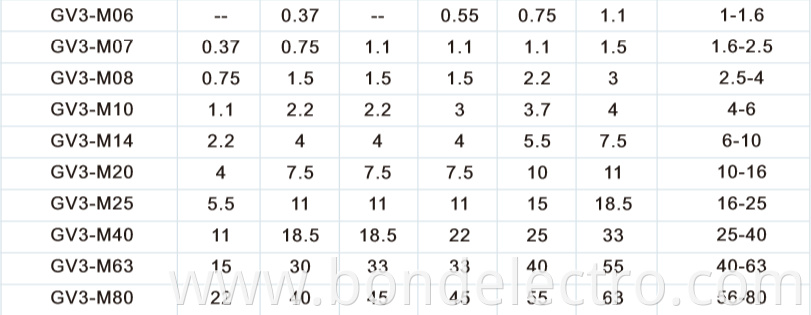

GV2-M MPCB Specification1GV2-M MPCB Specification2
