| Quantity: | |
|---|---|
Model No.: F360 2P 4P
Brand: BOND
Breaking Capacity: Low Voltage Circuit Breakers
Operation: Electric Type
Speed: Normal Type Circuit Breaker
Arc-extinguishing Medium: Air
Installation: Fixed
Structure: MCB
Poles Number: 3
Type: Circuit Breaker
Function: Conventional Circuit Breaker
Certification: ISO9001-2000
Packaging: Cartons
Productivity: 10000
Transportation: Ocean,Air
Place of Origin: China
Supply Ability: 50000
Certificate: CCC
HS Code: 8536200000
Port: Ningbo
Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,EXW

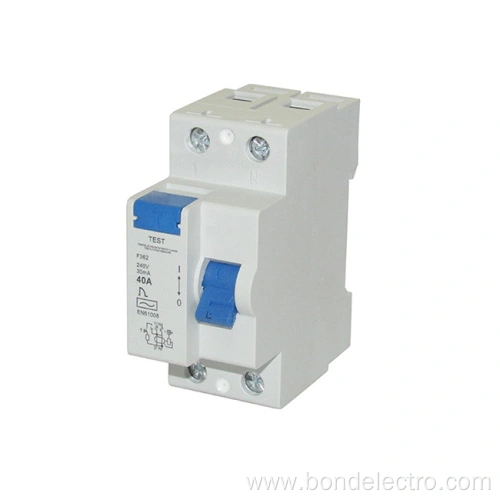

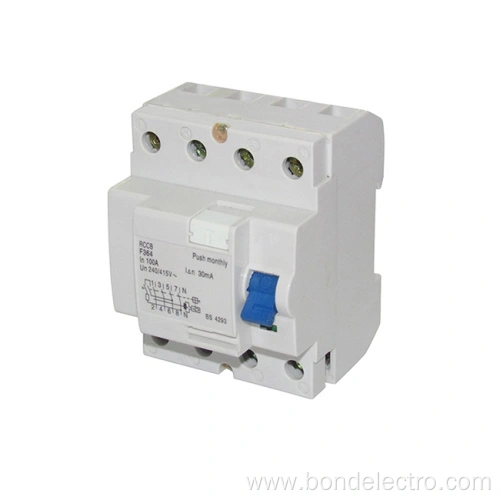

F360 series Electro-magnetic type RCCB 25-63A Residual Current Circuit Breaker
This product also can be with Electronic type which price will be more competitive.
The Enclosure of RCCB can be PA material and Bakelite material.
Electrical Features of residual circuit breaker
Type (wave form of the earth leakage sensed):AC,A,AC~S,A~S
Rated current In :25, 40, 50, 63A
Poles:2P, 4P
Rated voltage Ue : 240/415V
Rated sensitivity In :0.03, 0.1, 0.3A
Insulation voltage Ui:500V
Rated residual making and breaking capacity
Im:500A(In=25A/40A) 630A(In=50/63A)
Short-circuit current Inc=Ic:6000A
SCPD fuse:
Break time under In :0.1s
Rated frequency:50/60Hz
Rated impulse withstand voltage (1.2/50)Uimp:4,000V
Dielectric TEST voltage at ind. Freq. for 1min:2.5kV
Pollution degree:2
Mechanical Features
Electrical life:2,000
Mechanical life:4,000
Fault current indicator: Yes
Protection degree: I P20
Ambient temperature (with daily average 35):-5degree...+40degree
Storage temperation: -25degree...+70degree
Installation
Terminal connection type: Cable/Pin-type busbar
Terminal size top/bottom for cable: 25mm2
Terminal size top/bottom for busbar: 25mm2
Tightening torque 2.5 N*m
Mounting: On DIN rail EN 60715 (35mm) by means of fast clip device
Connection: From top and bottom
Product Categories : Circuit Breakers
