Model No.: ID 2P 4P
Brand: BOND
Breaking Capacity: Low Voltage Circuit Breakers
Operation: Electric Type
Speed: Normal Type Circuit Breaker
Arc-extinguishing Medium: Air
Installation: Fixed
Structure: MCB
Poles Number: 3
Type: Circuit Breaker
Function: Conventional Circuit Breaker
Certification: ISO9001-2000
Packaging: Cartons
Productivity: 10000
Transportation: Ocean,Air
Place of Origin: China
Supply Ability: 50000
Certificate: CCC
HS Code: 8536200000
Port: Ningbo
Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,EXW

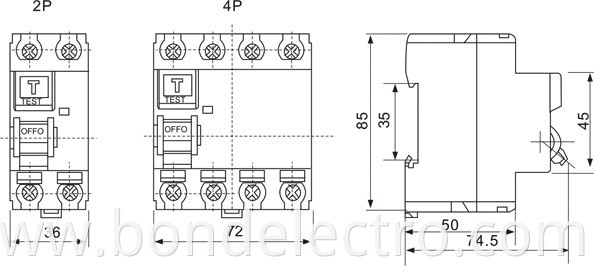

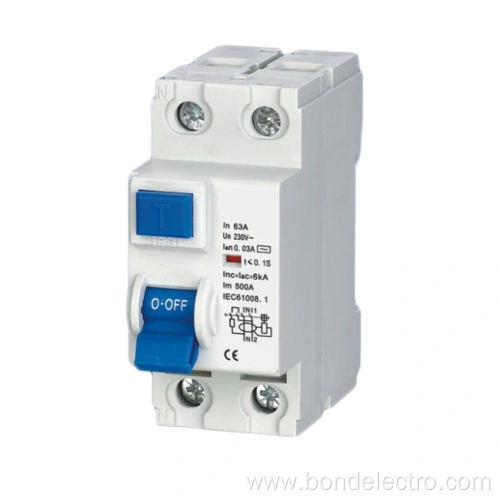

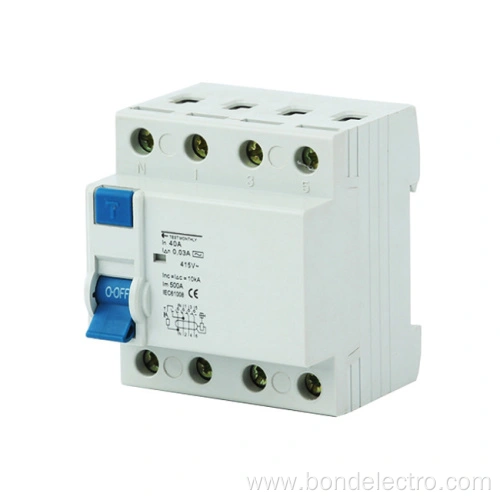

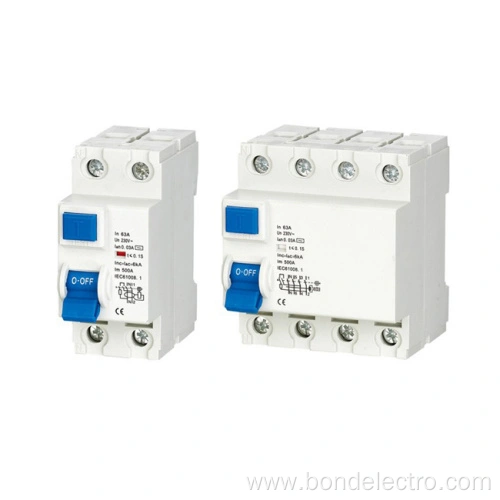

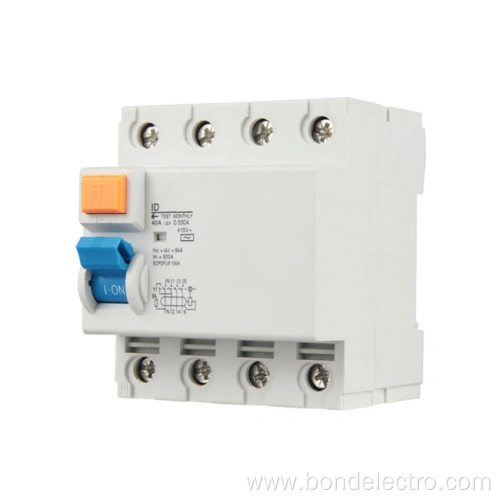

ID series Electro-magnetic type RCCB 25-63A Residual Current Circuit Breaker
Electrical Features of residual circuit breaker
Type (wave form of the earth leakage sensed):AC,A,AC~S,A~S
Rated current In :25, 40, 50, 63A
Poles:2P, 4P
Rated voltage Ue : 240/415V
Rated sensitivity In :0.03, 0.1, 0.3A
Insulation voltage Ui:500V
Rated residual making and breaking capacity
Im:500A(In=25A/40A) 630A(In=50/63A)
Short-circuit current Inc=Ic:6000A
SCPD fuse:
Break time under In :0.1s
Rated frequency:50/60Hz
Rated impulse withstand voltage (1.2/50)Uimp:4,000V
Dielectric TEST voltage at ind. Freq. for 1min:2.5kV
Pollution degree:2
Mechanical Features
Electrical life:2,000
Mechanical life:4,000
Fault current indicator: Yes
Protection degree: I P20
Ambient temperature (with daily average 35):-5degree...+40degree
Storage temperation: -25degree...+70degree
Installation
Terminal connection type: Cable/Pin-type busbar
Terminal size top/bottom for cable: 25mm2
Terminal size top/bottom for busbar: 25mm2
Tightening torque 2.5 N*m
Mounting: On DIN rail EN 60715 (35mm) by means of fast clip device
Connection: From top and bottom
Product Categories : Circuit Breakers
